Special Actions

Panalight’s special action equipment for every situation of camera car, aerial and underwater shooting.

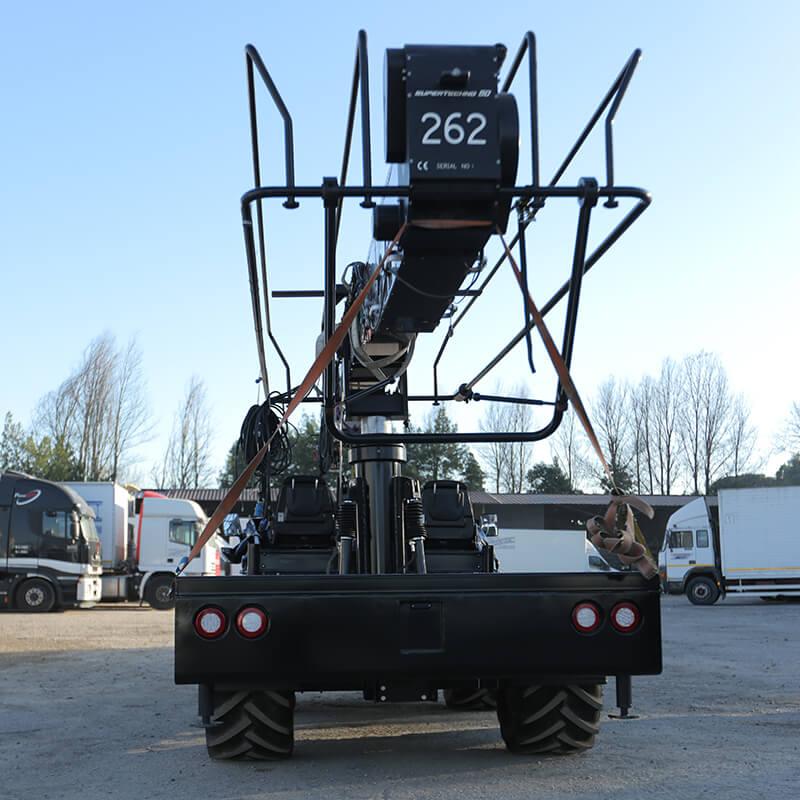

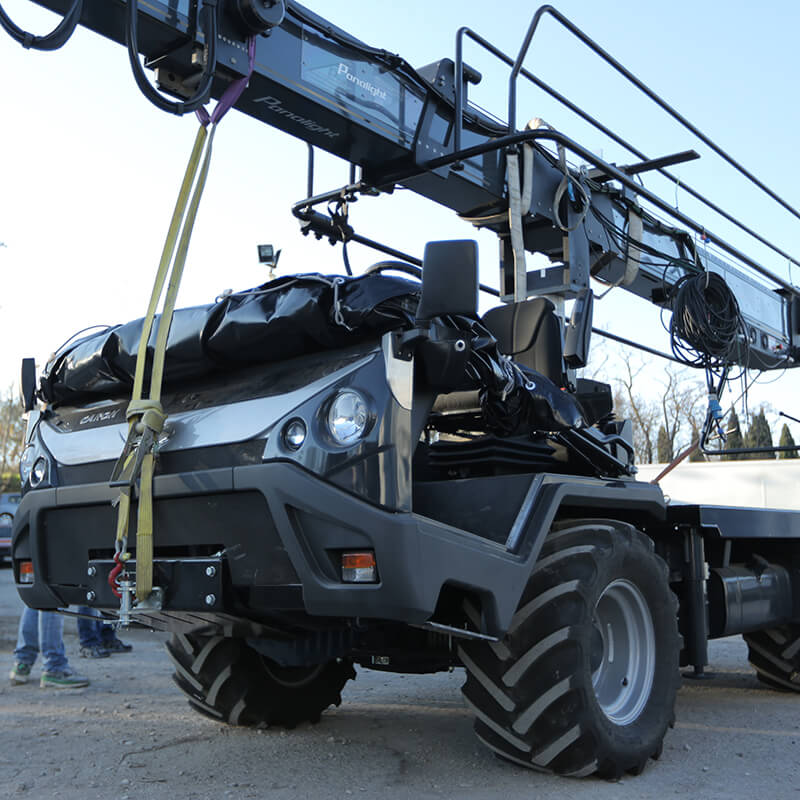

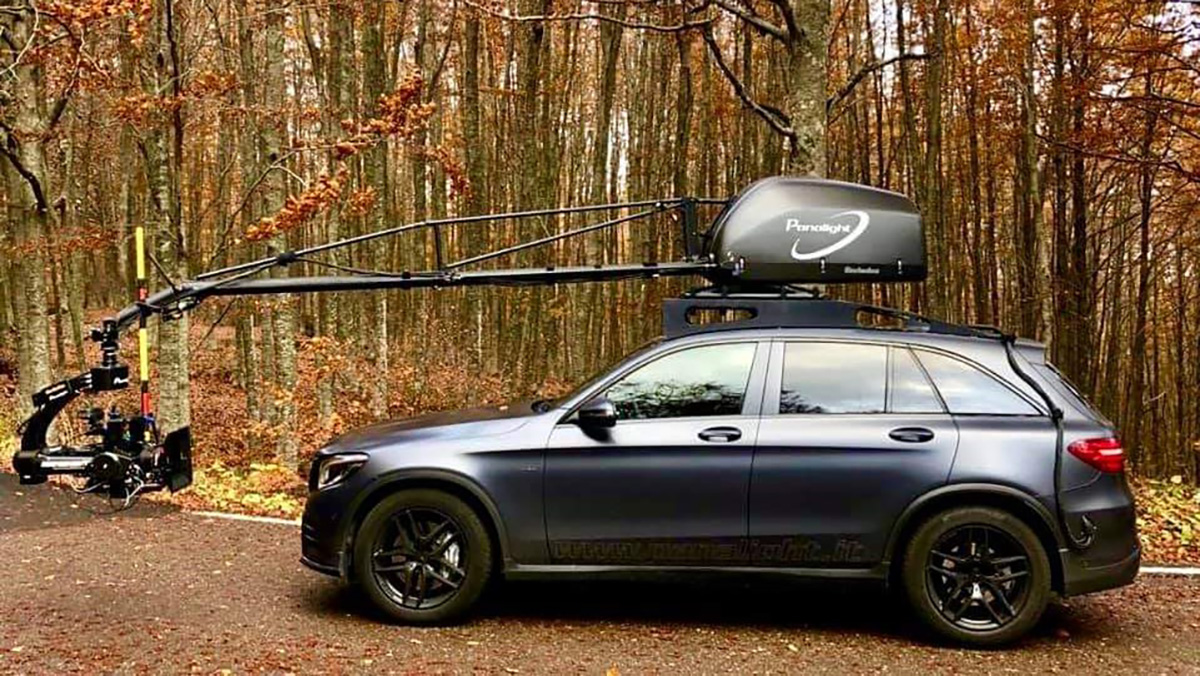

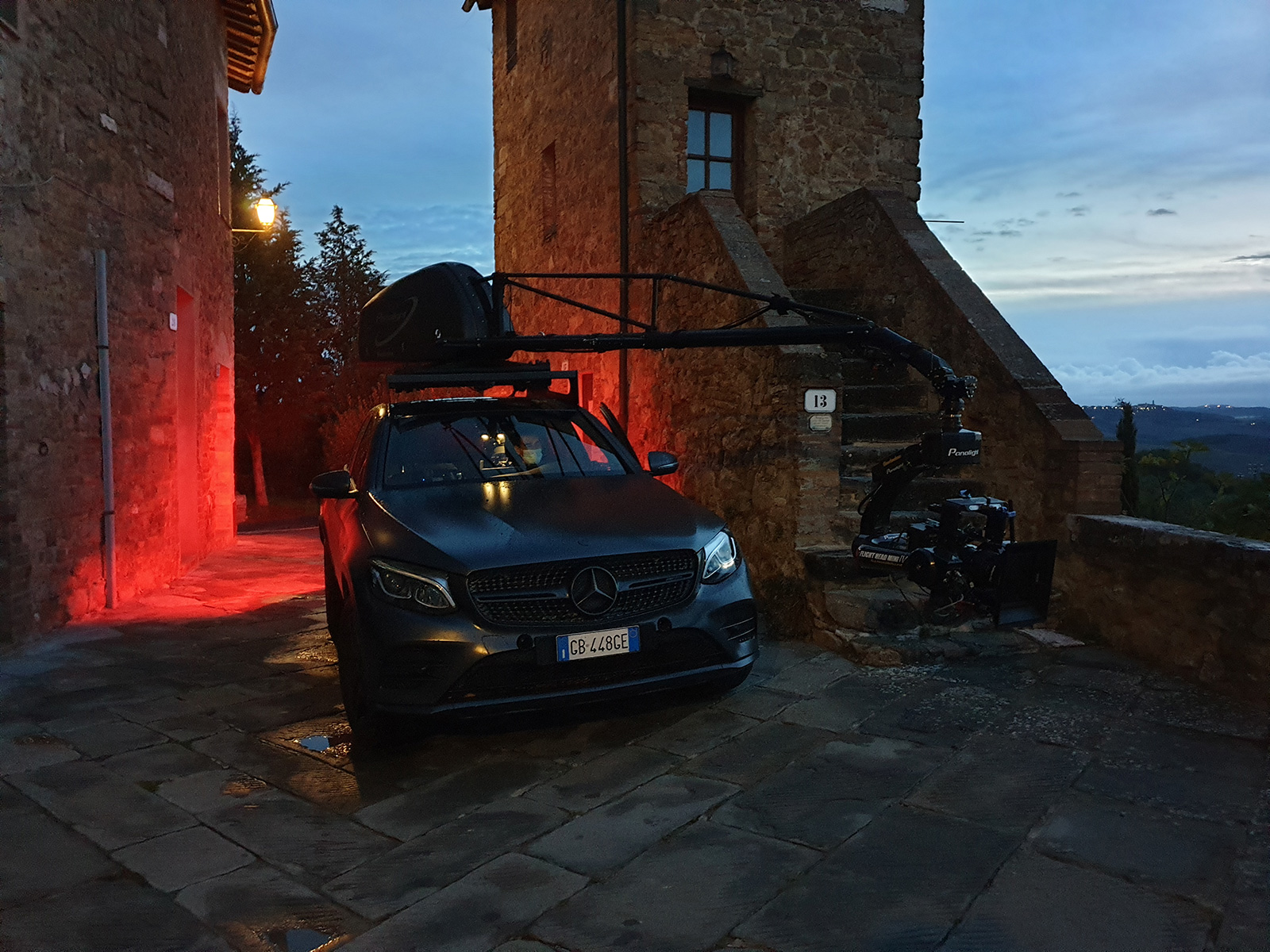

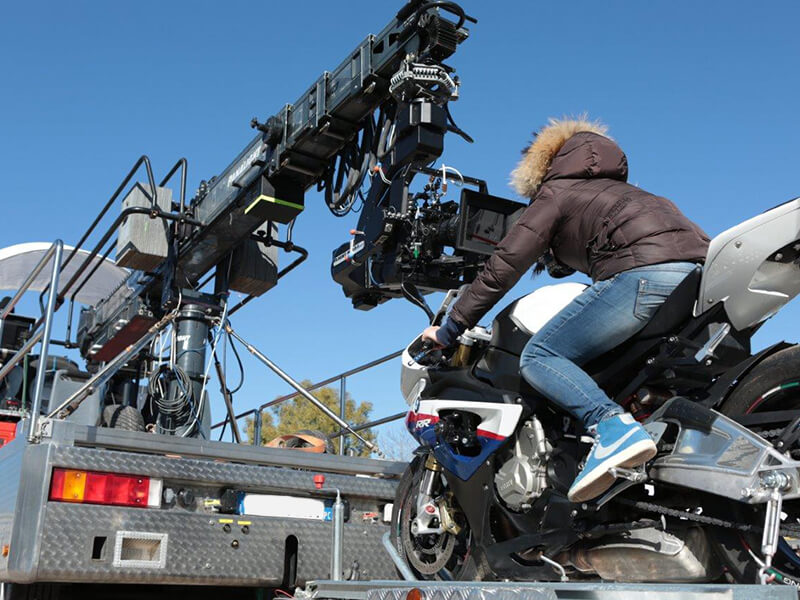

Russian Arm Dynamic

  • Arm length 3.6m
  • Lens height 3.3m
  • Tilt / Pan / Rotation 45º / 360º / + – 3
  • Pan speed max 4.5sec
  • Tilt speed max 1.5sec / 45º
  • Payload 25kg
  • Weight with camera max 180kg
  • Max speed up to 160km/h

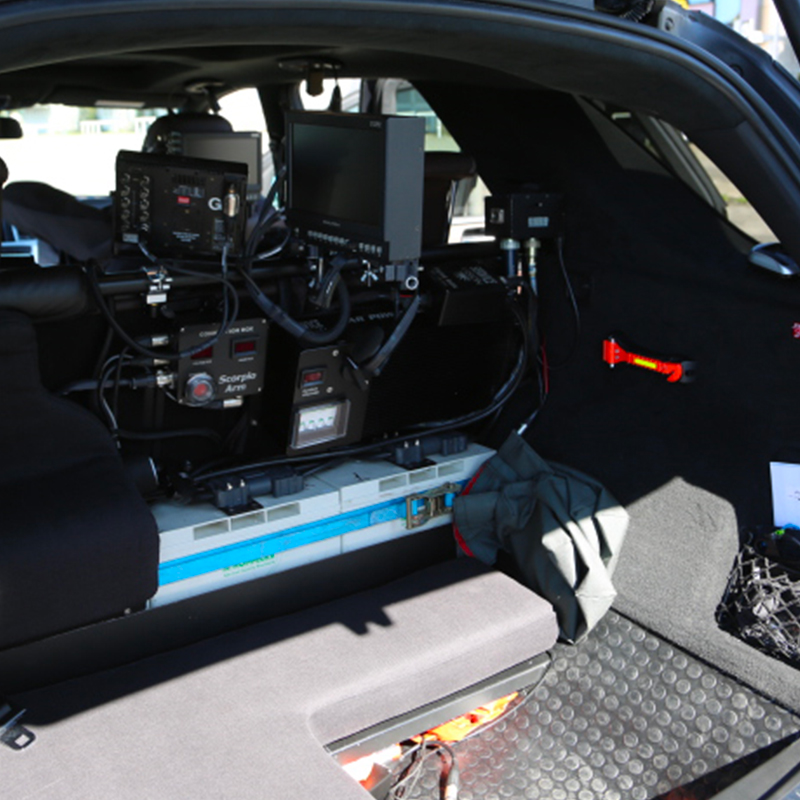

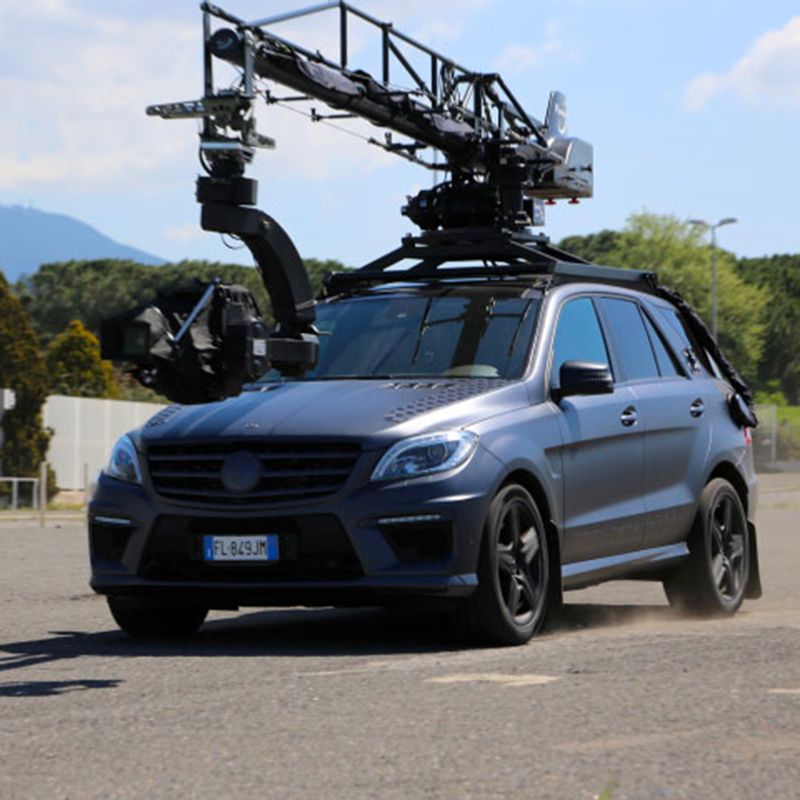

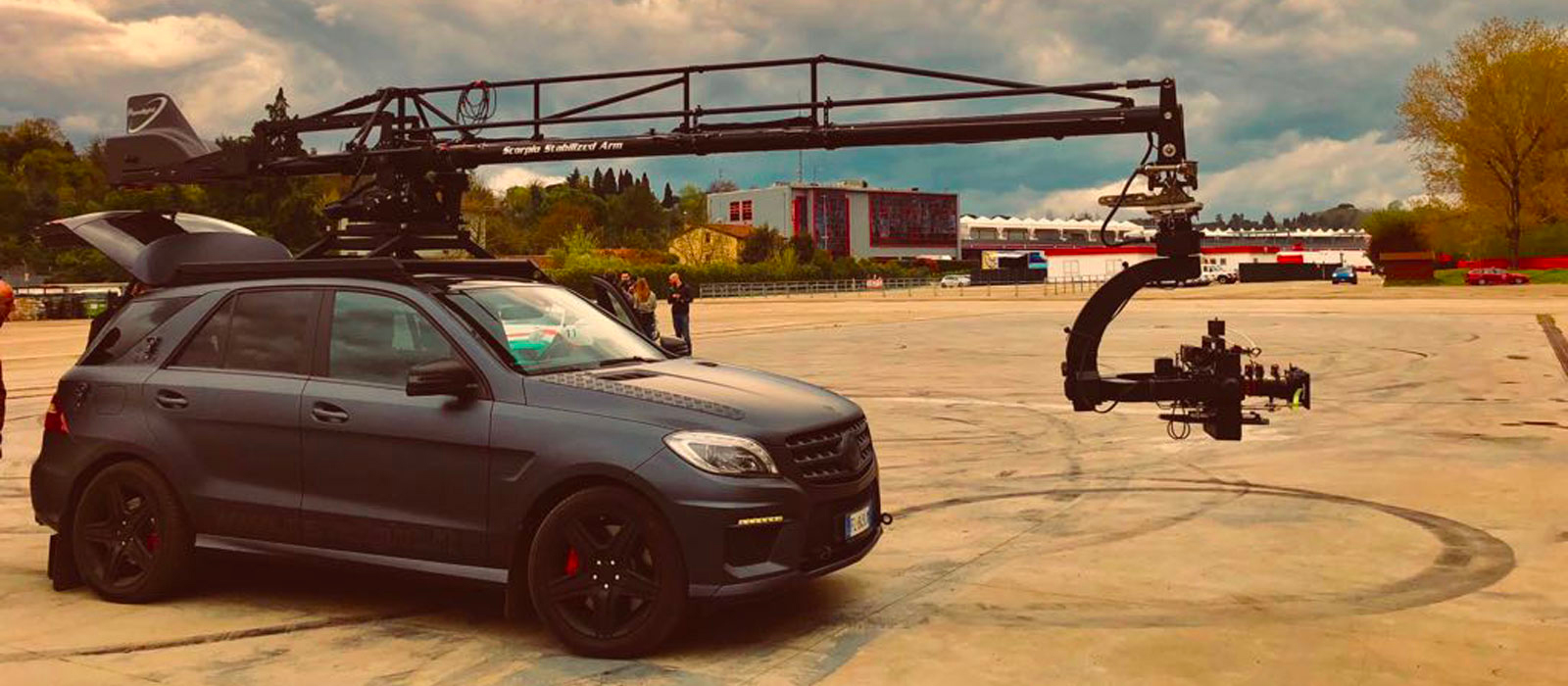

Scorpio Arm

  • Gyro stabilization in the TILT axis
  • Available different arm configurations: 12', 14' and 18'
  • Waterproof

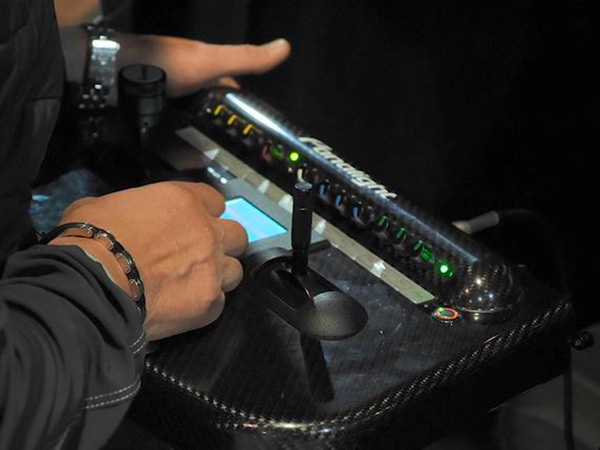

  • Limits, speed control and damping control are available from the control desk

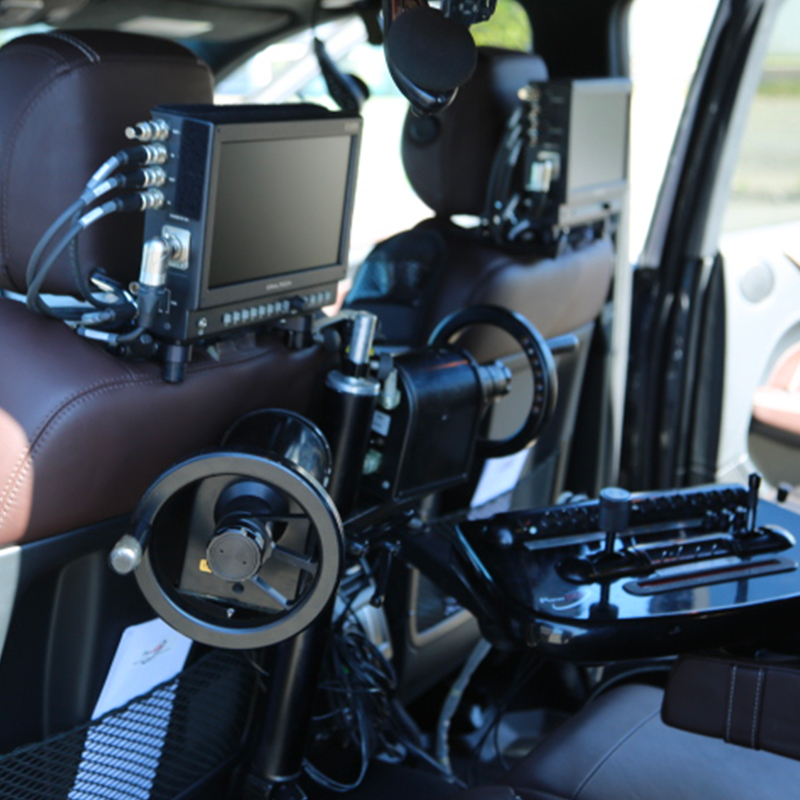

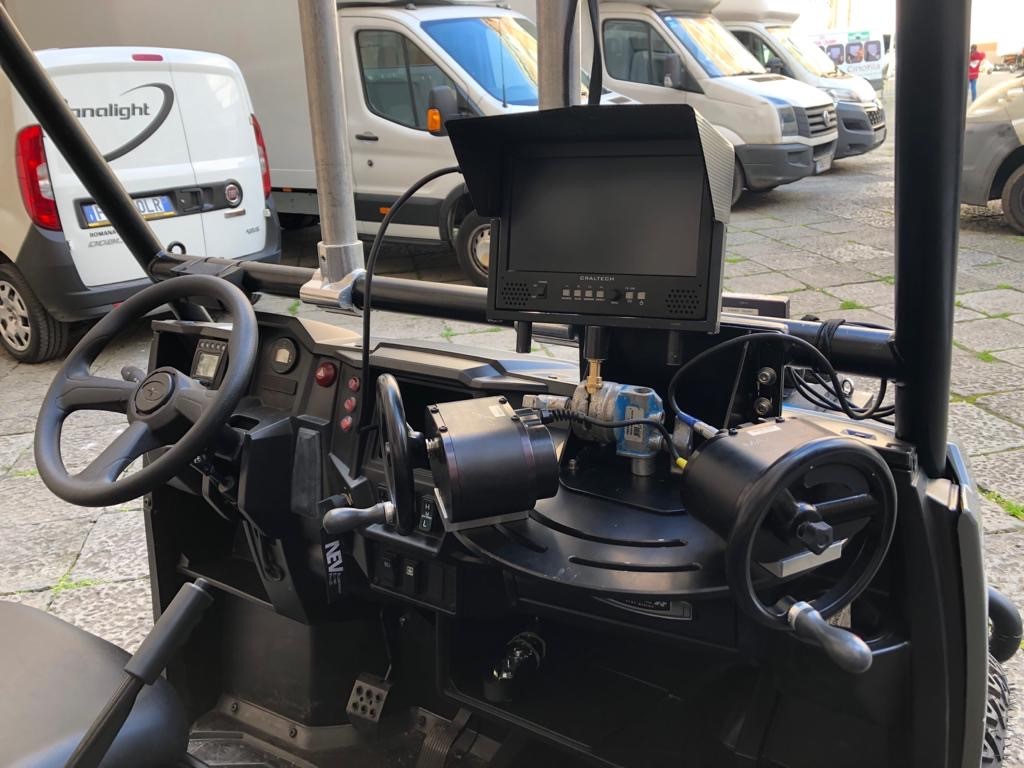

  • Controlled from joystick situated inside the car
  • Send the position of each axis constantly like a Motion Capture
  • Record and repeat all movements of each axis like a Motion Control
  • Go to a fixed position with switch for safety purpouses
  • PAN and TILT motors are the same
  • Powered by 36V batteries
  • PAN speed: 5.5 s/rev
  • Maximum Payload: 70kg (154 lbs)
  • Max. Weight with maximum payload and standard configuration (12'): 365kg (805 lbs)
Request information

PanaTeam

Info

PanaTeam was born in 2011 and is composed by highly qualified professionals specialized in ground and aerial shots using gyro stabilized pursuit systems and remote heads; it has gained a great amount of experience on an international level and it is one of very few teams that can achieve breath-taking sequence shots with these kind of tools for commercials and films. PanaTeam takes special care in assisting productions throughout the whole production process starting from the planning of the shots to the logistics.

View all video

Request information

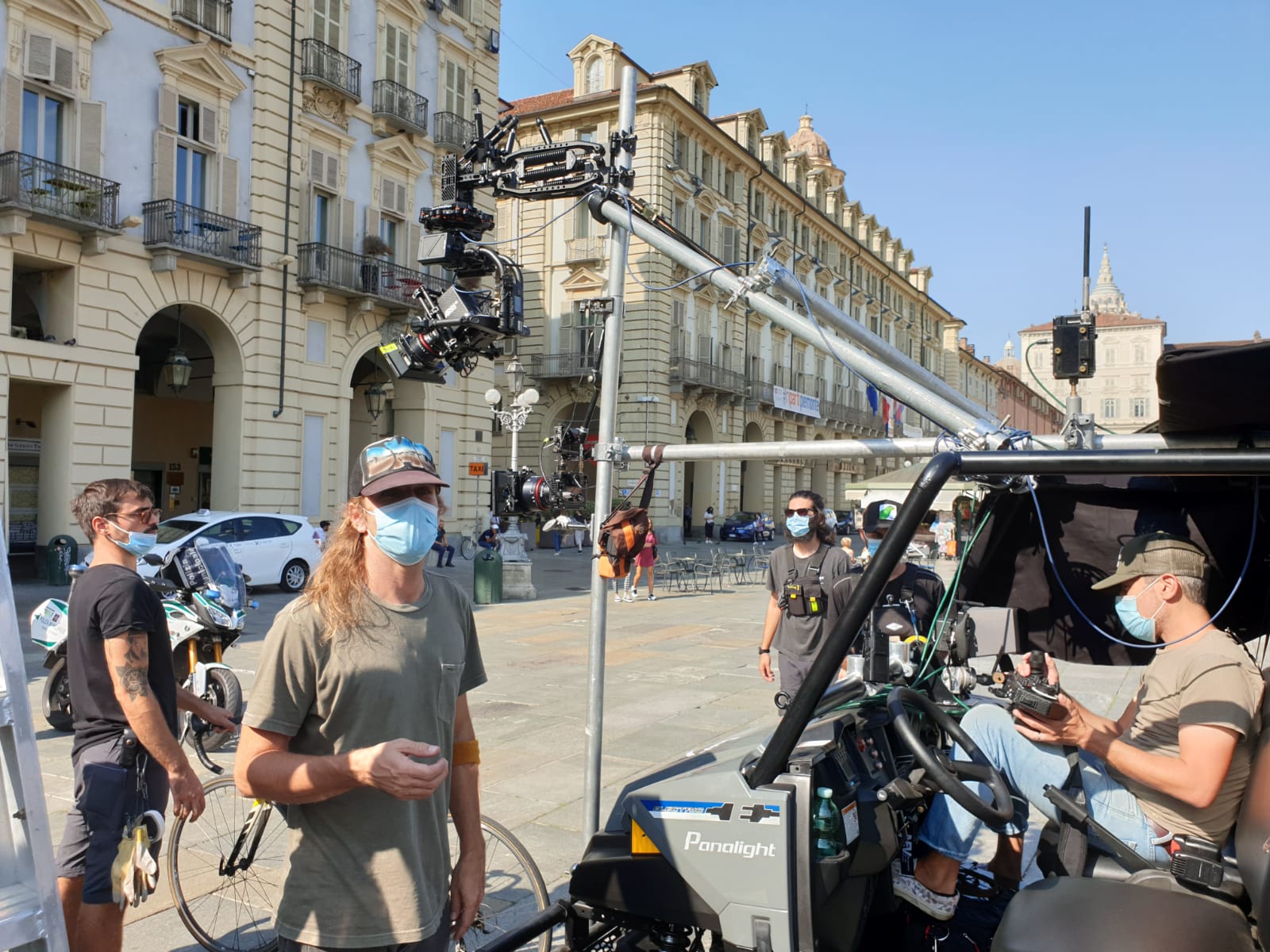

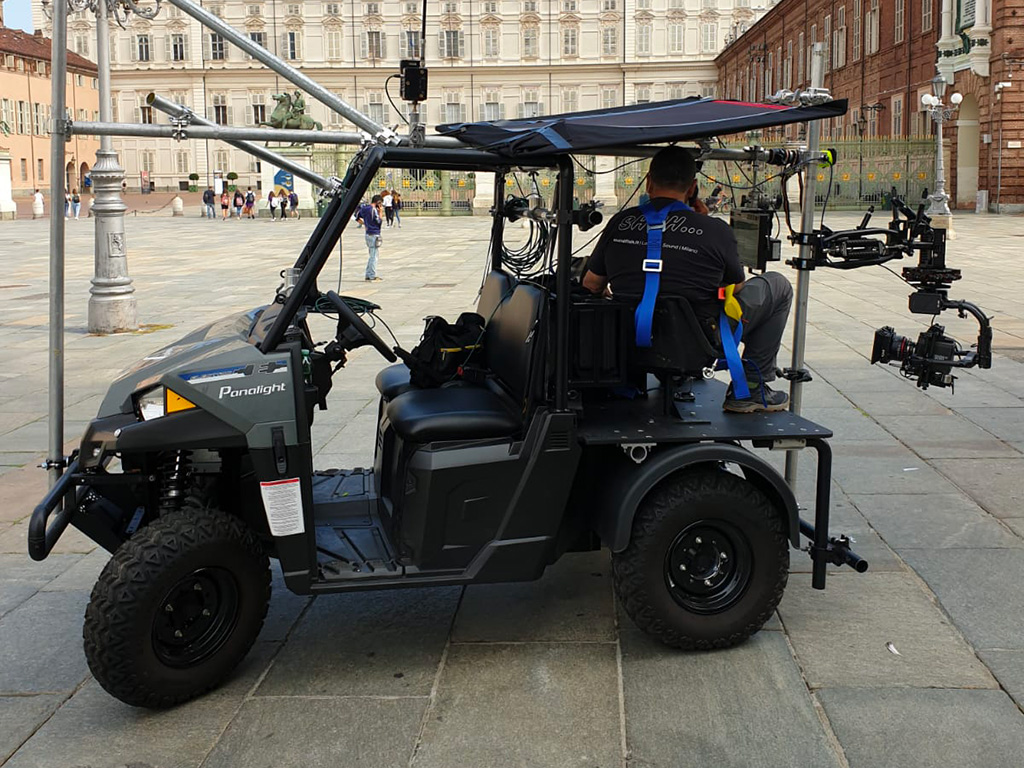

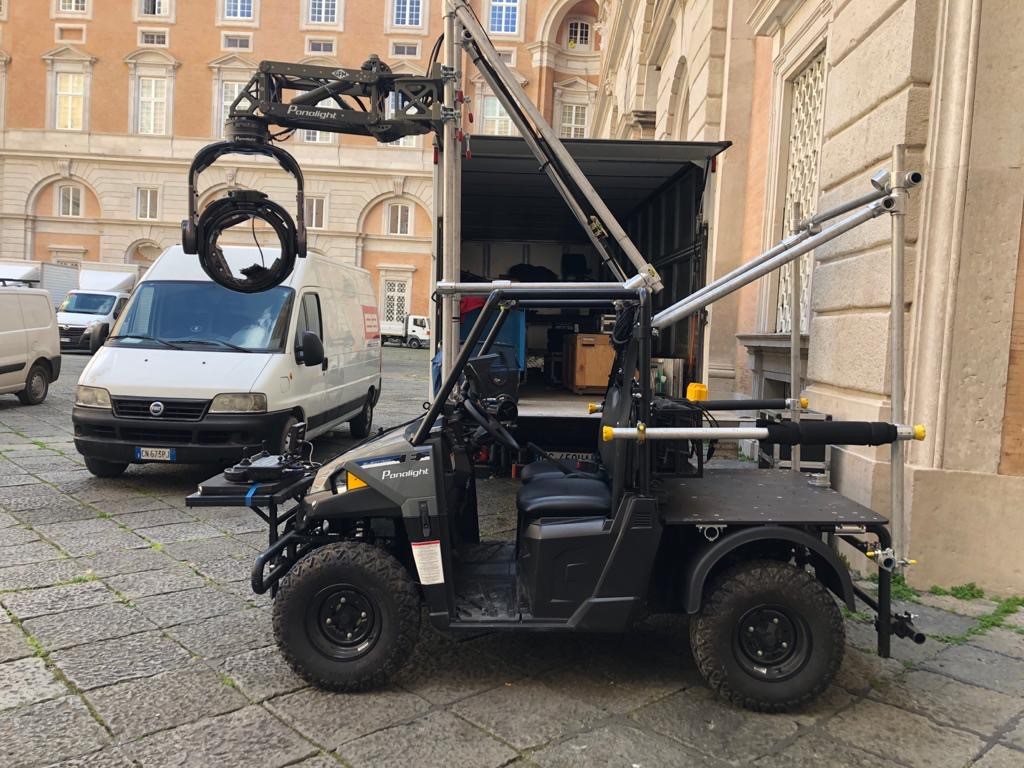

PanaRanger E

Technical Data

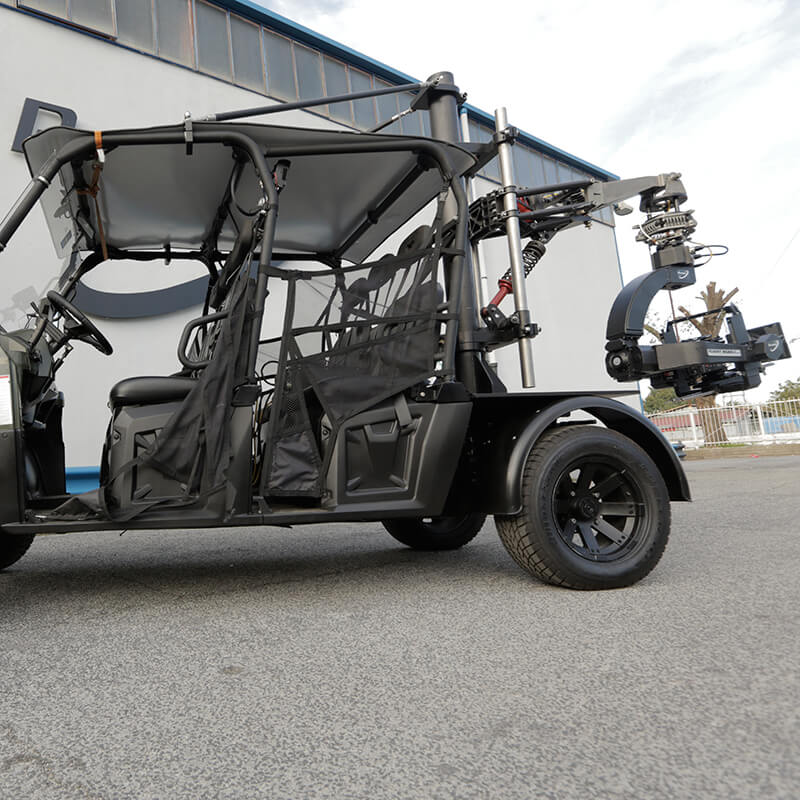

  • PanaRanger E is a camera car system based on a Polaris Ranger EV.
  • A support system allow both back and front side to mount systems as gimbal, remote head, arm, steady operator.
  • PanaRanger E carries a maximum 4 people: precision driver, camera operator, focus puller, dop or director.
  • Power 30HP
  • Max speed 40 km/h - 25 mph
  • Set up time 15’ to 90’ max
Download PanaRanger E Technical data

Request information

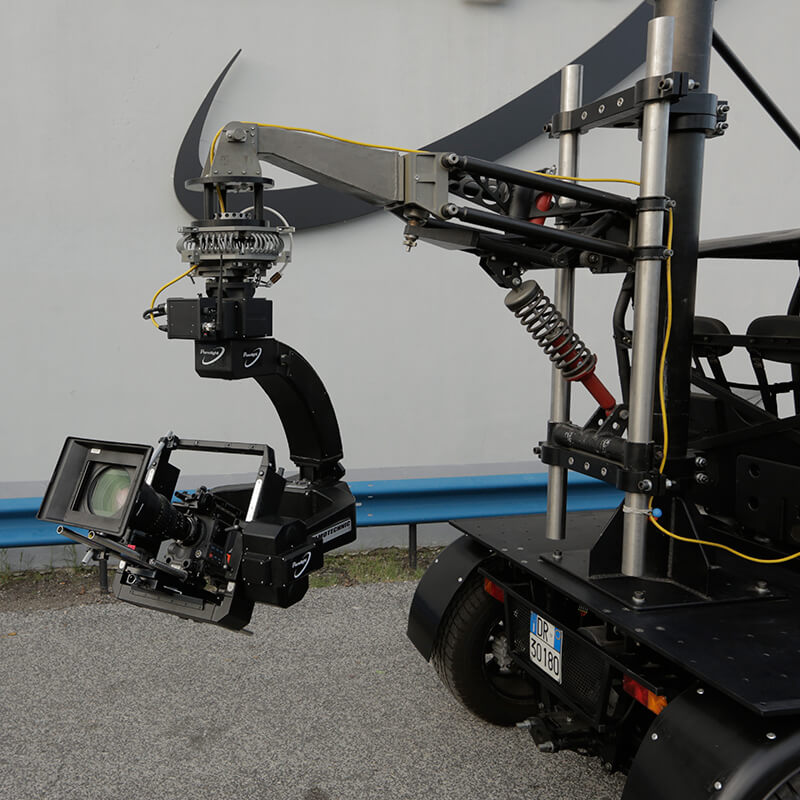

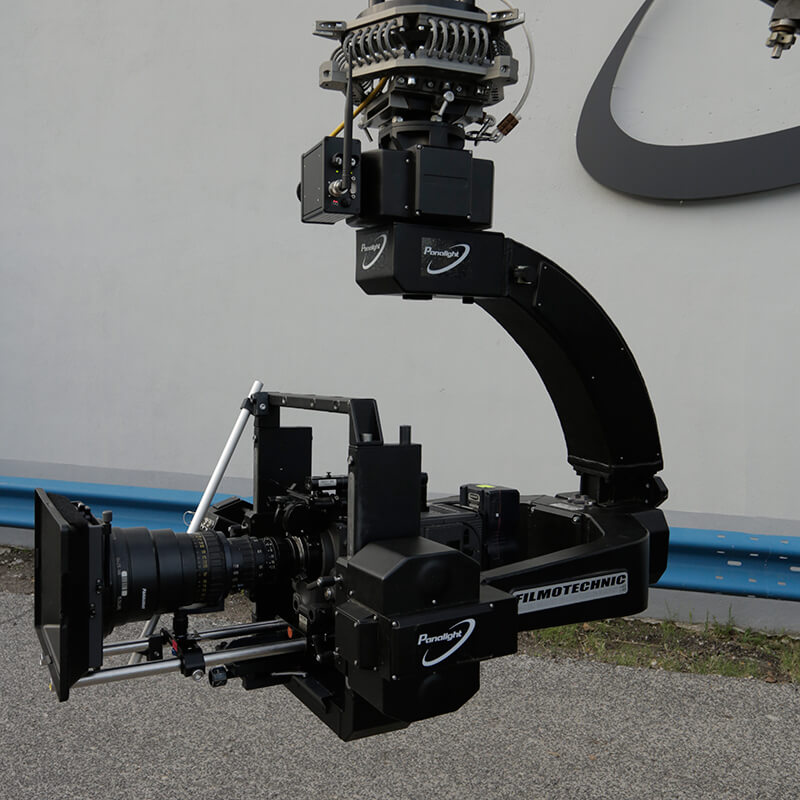

PanaRanger

Technical Data

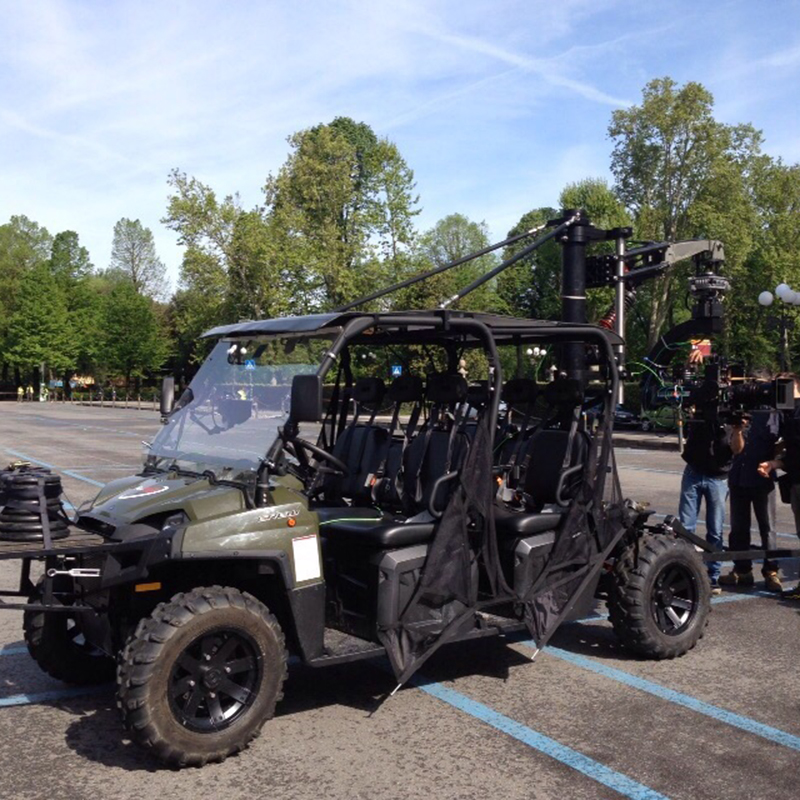

  • PanaRanger is a camera car system based on a Polaris Ranger Crew 800.
  • A support system allow both back and front side to mount systems as gimbal,remote head, arm, steady operator.
  • PanaRanger carries a maximum of 4 people: precision driver, camera operator, focus puller, dop or director.
  • Max speed 90 km/h - 56 mph
  • PanaRanger travels on a van Fiat Ducato + cart
  • Set up time 15’ to 90’ max
Download PanaRanger Technical data

Request information

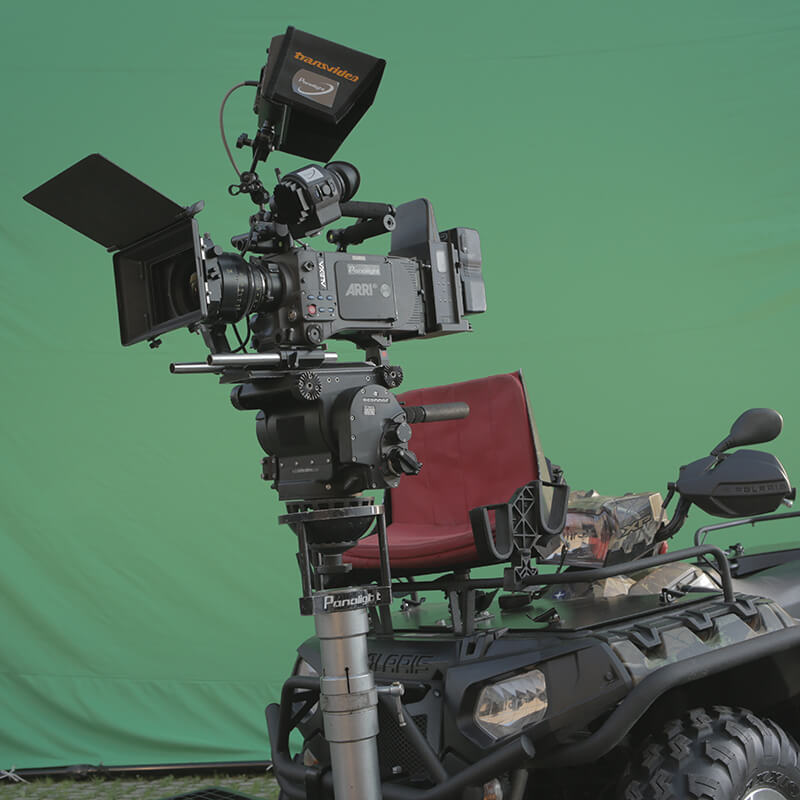

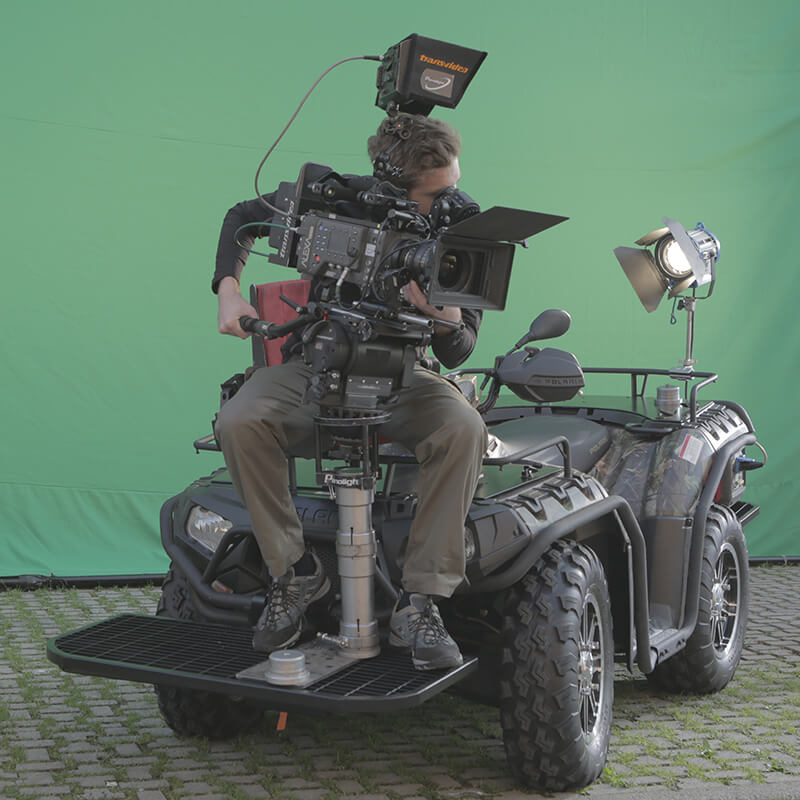

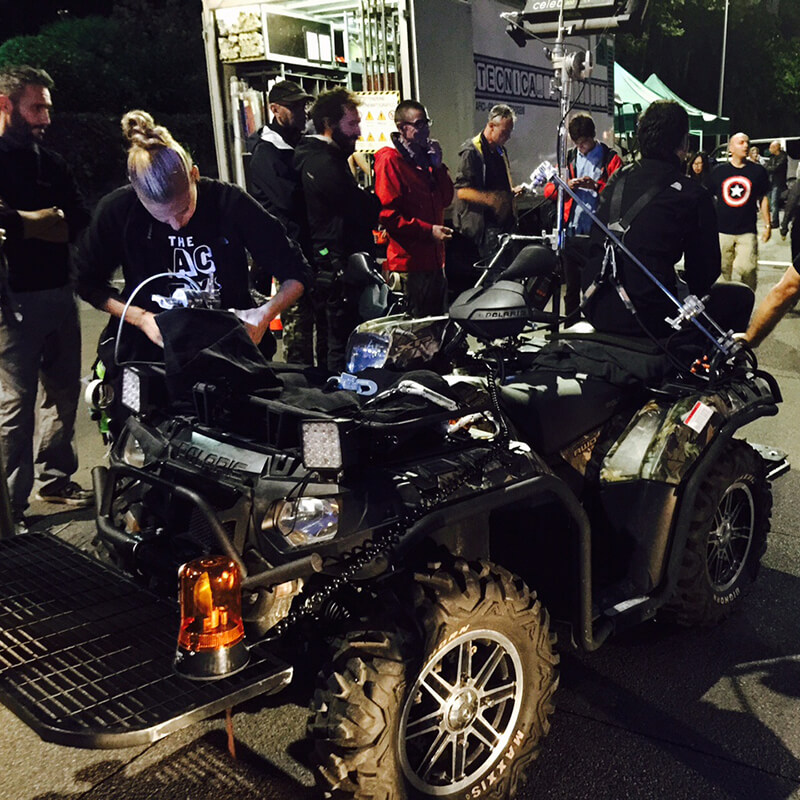

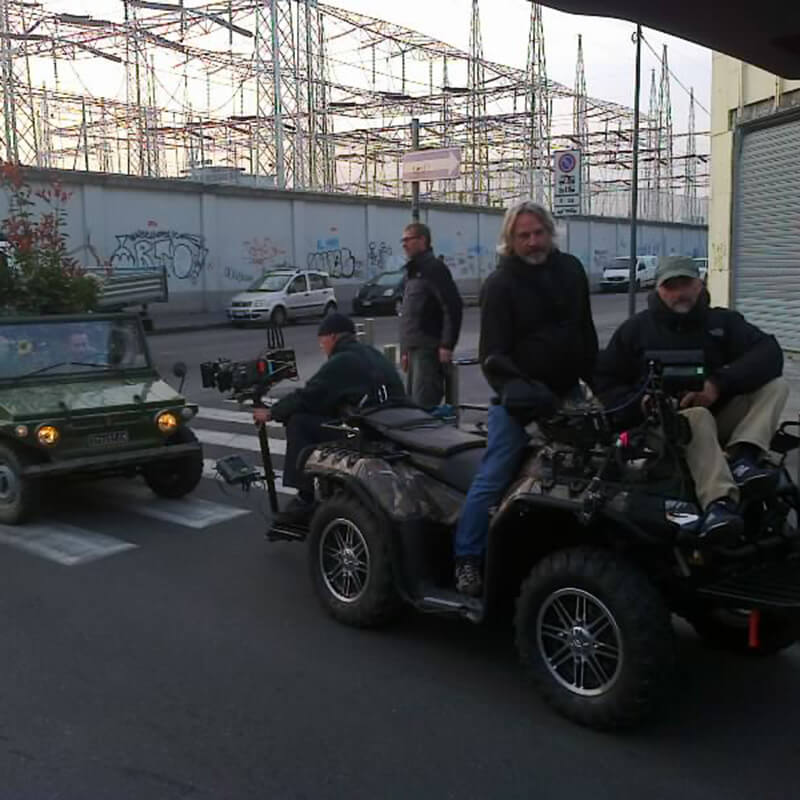

Quad

Technical Data

  • Adjustable Suspension Fox
  • Quad is set ideally for driver, operator, focus puller but can carry max 4 persons.
  • Front and rear plates to carry Bazooka or other accessories.
  • Ideal for off road, ice (studded tires), urban limited areas
  • Max speed 90km/h – 56mph
  • Set up time 15’

Request information

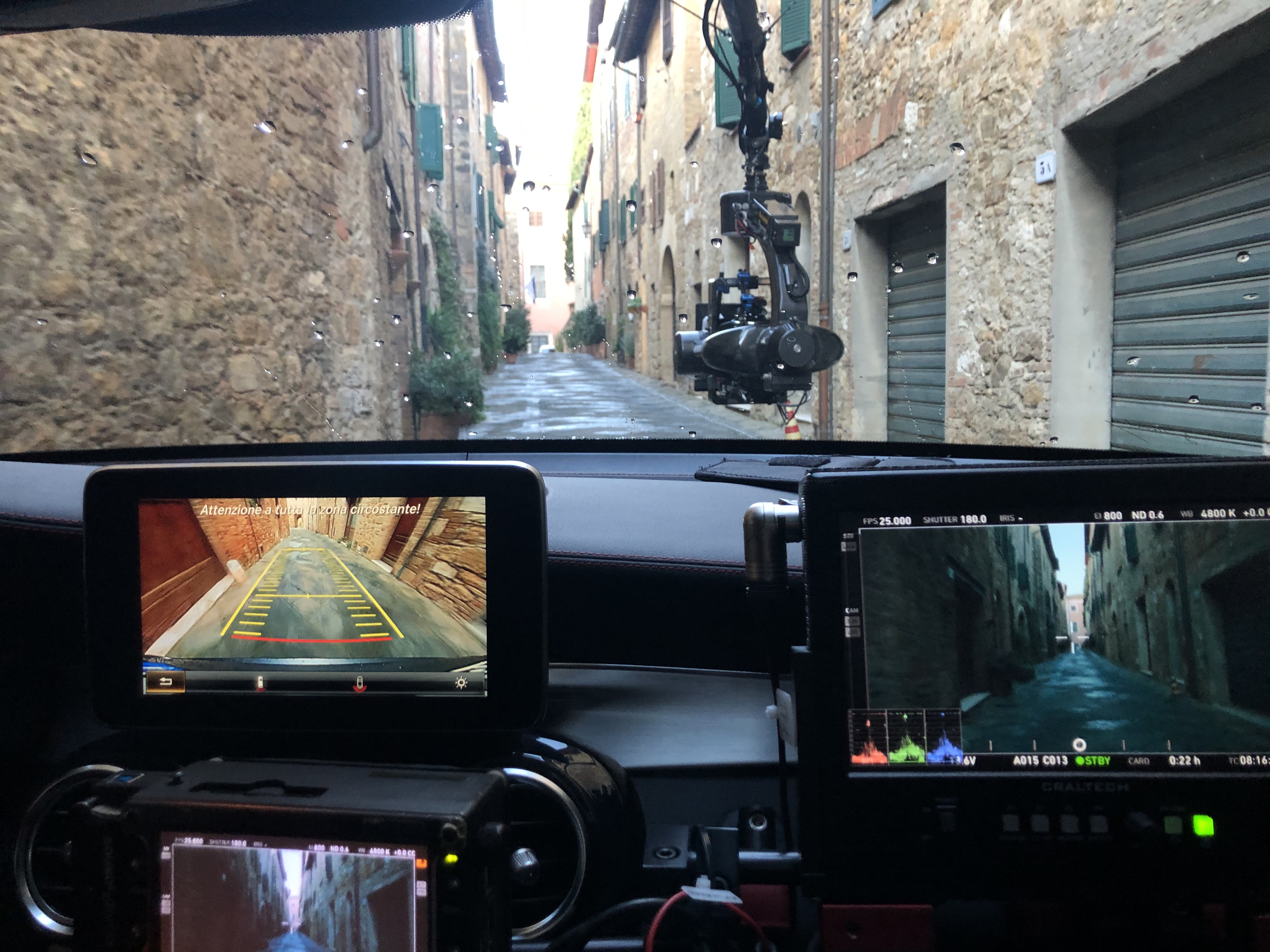

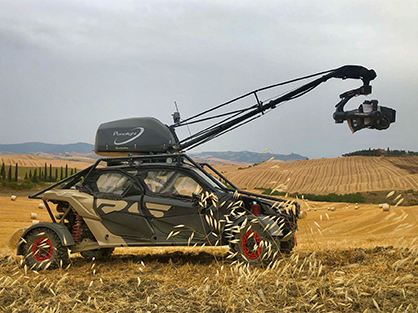

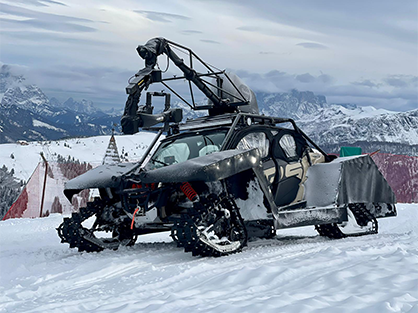

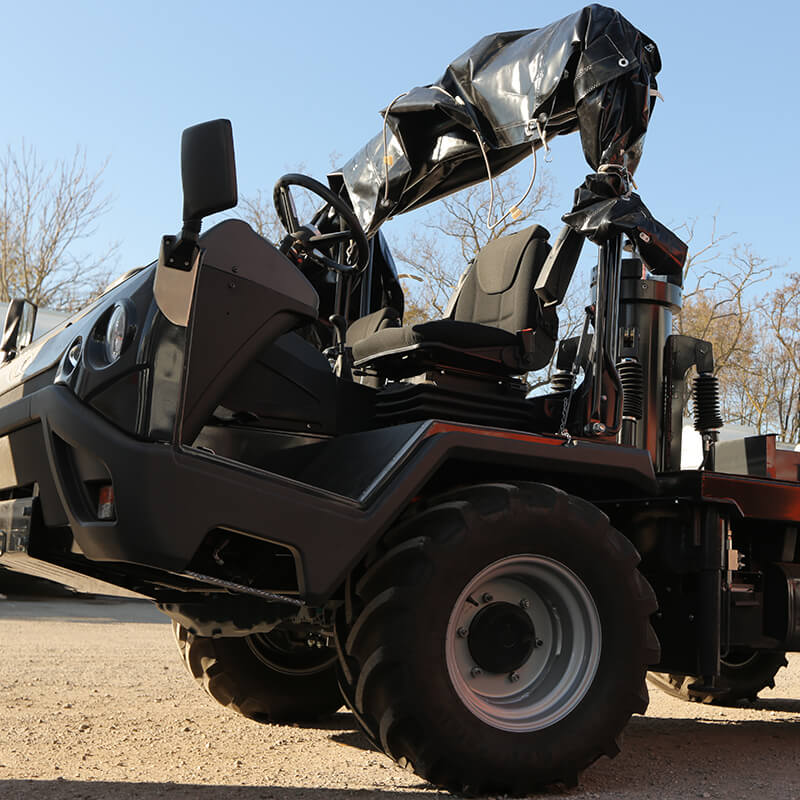

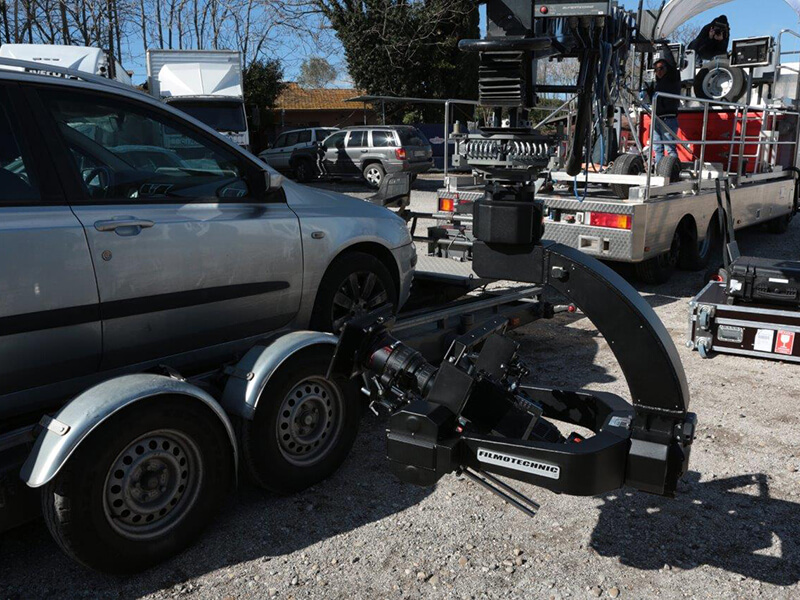

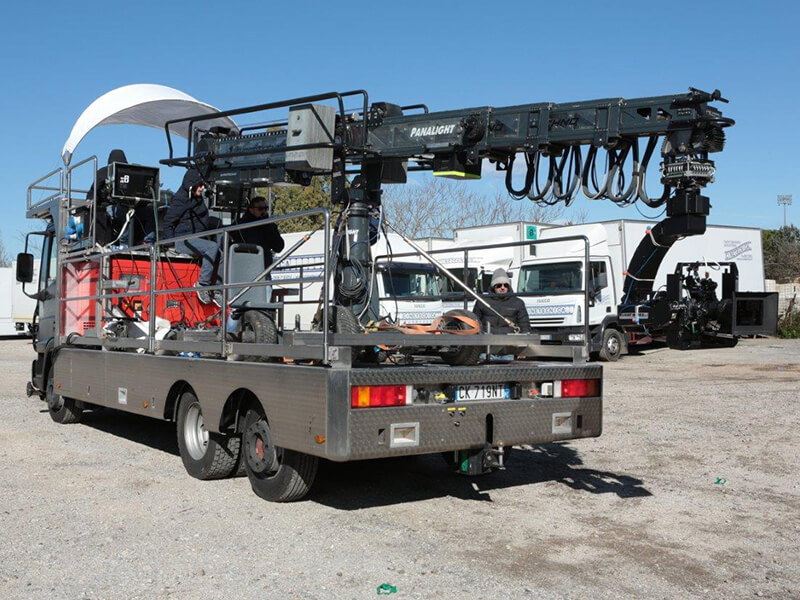

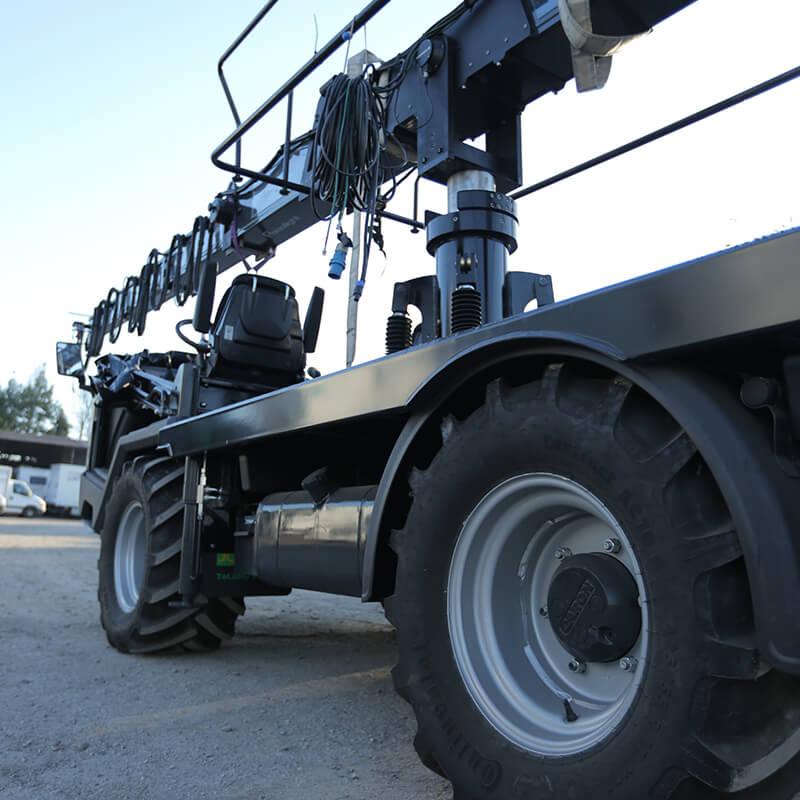

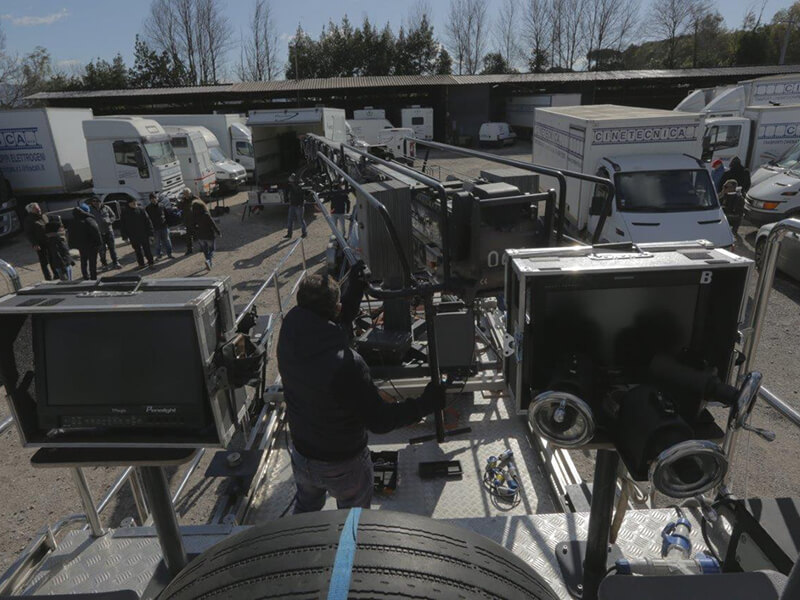

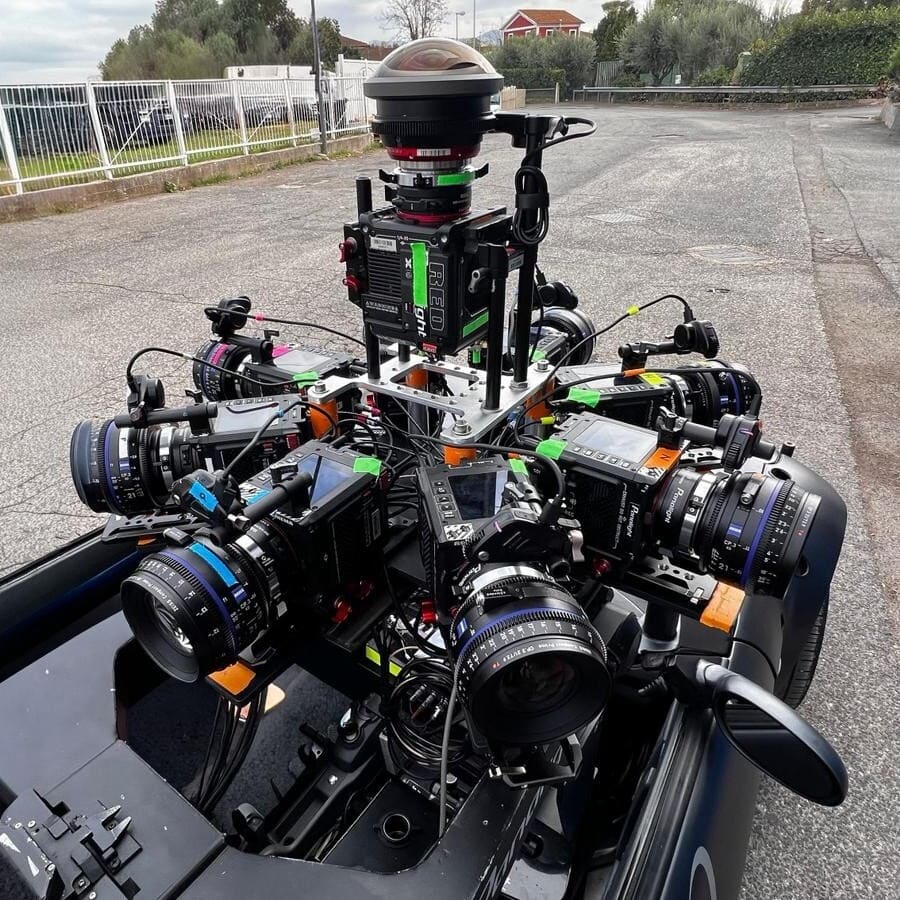

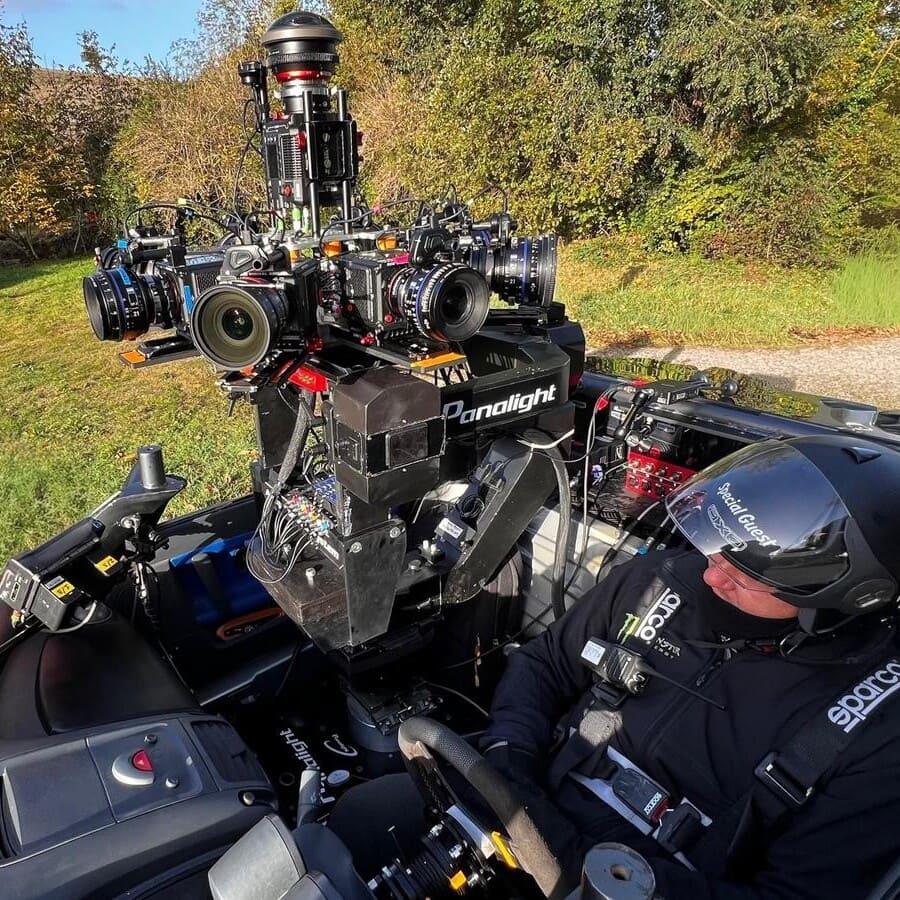

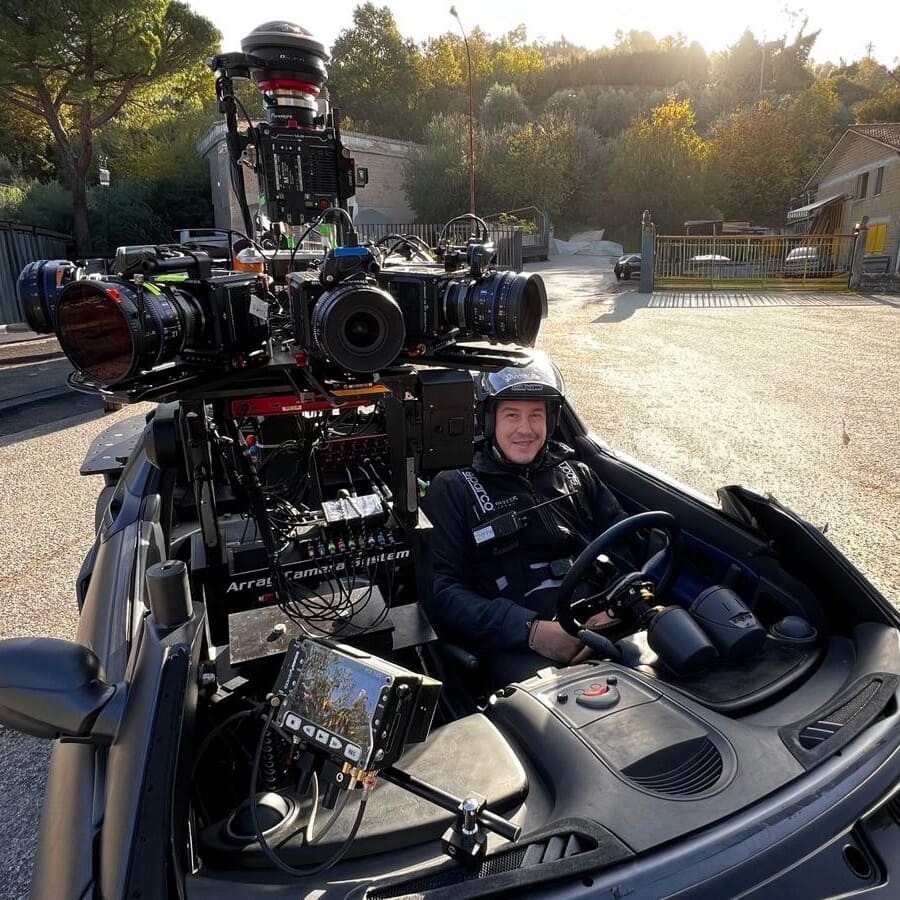

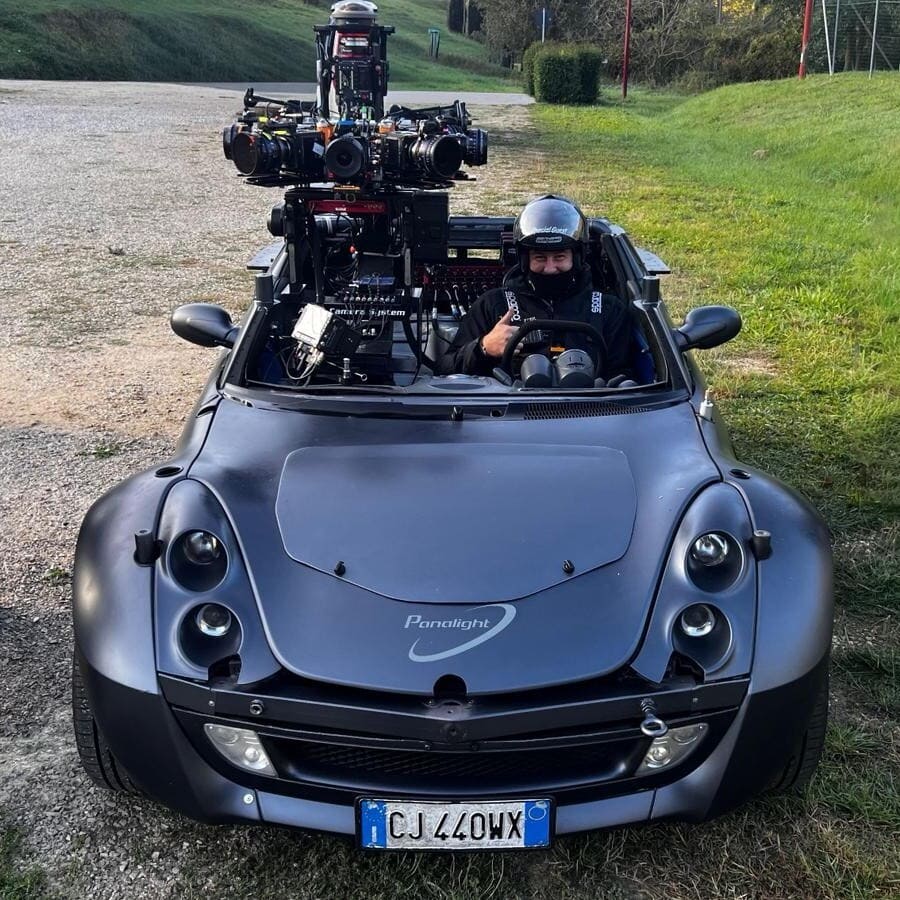

Camera Car

Info

Panalight offers a range of camera car systems.
Apply for information to evaluate with our specialist the best solution for your shooting.

Request information

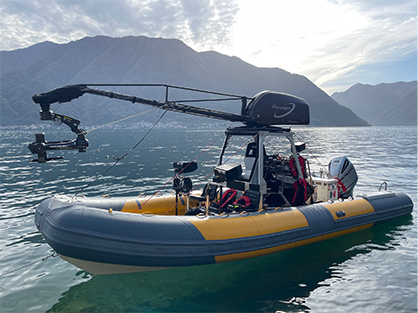

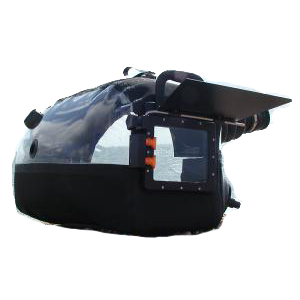

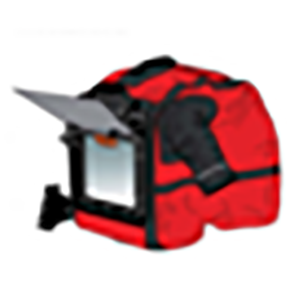

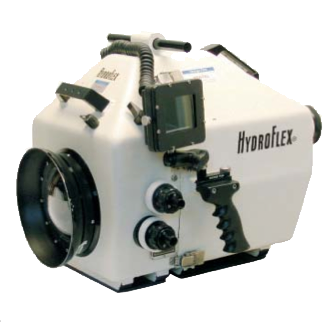

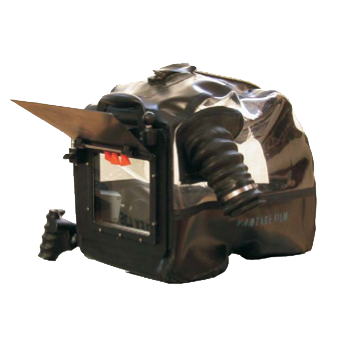

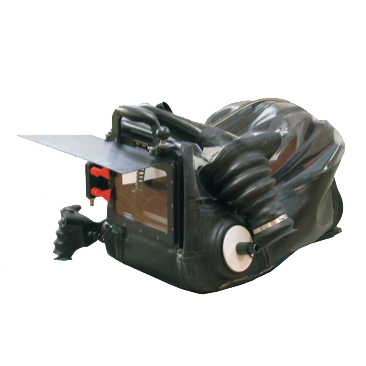

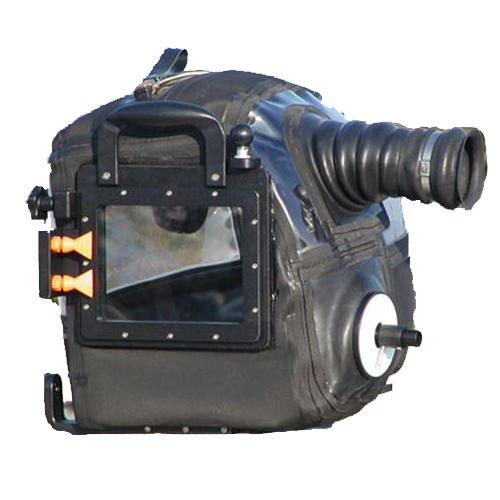

Underwater

Info

Panalight offers all the kind of splash bags and underwater lights and accessories.
Apply for information to evaluate with our specialist the best solution for your shooting.
