Special Actions

Panalight’s special action equipment for every situation of camera car, aerial and underwater shooting.

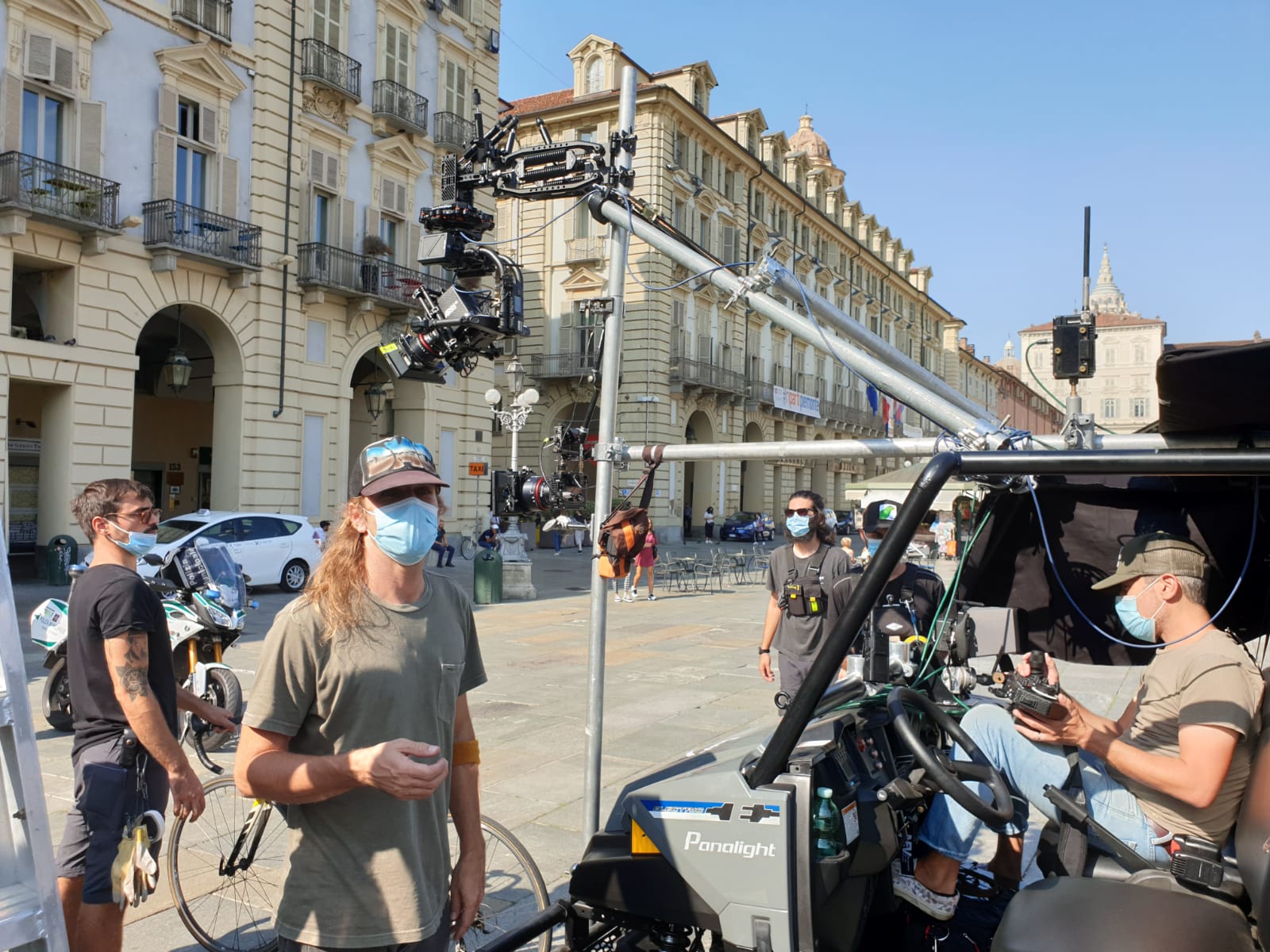

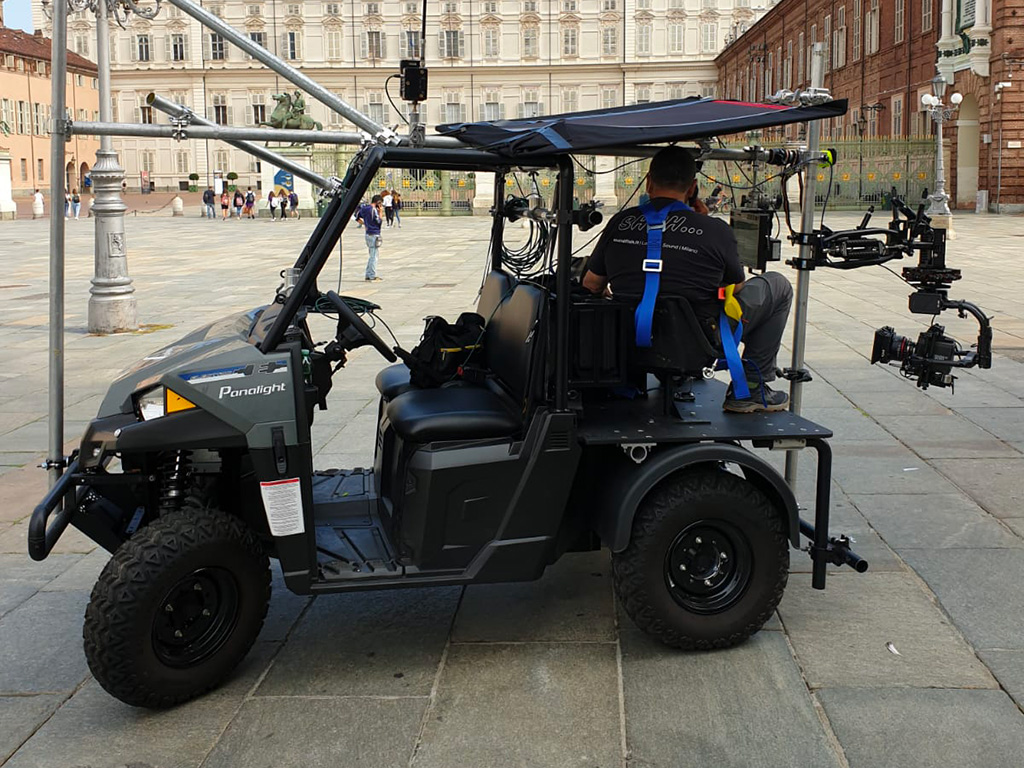

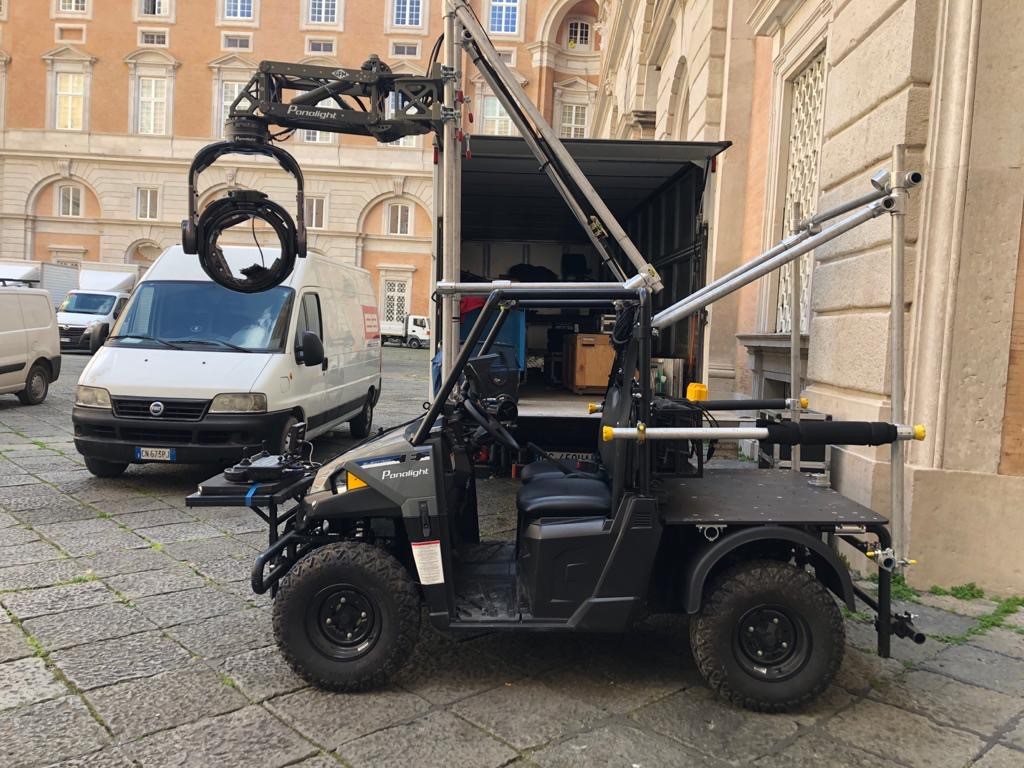

PanaRanger

Technical Data

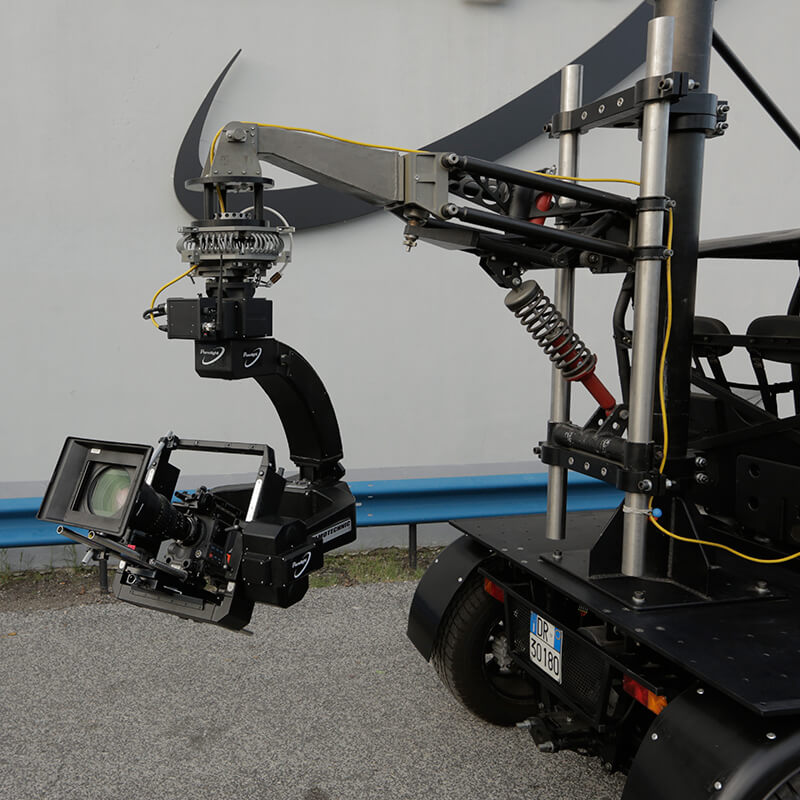

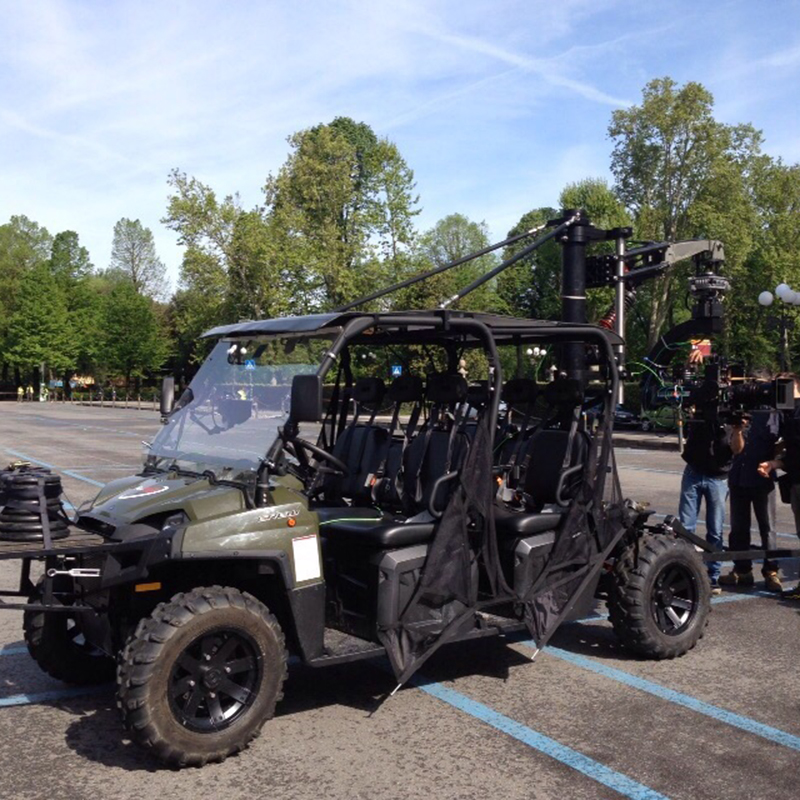

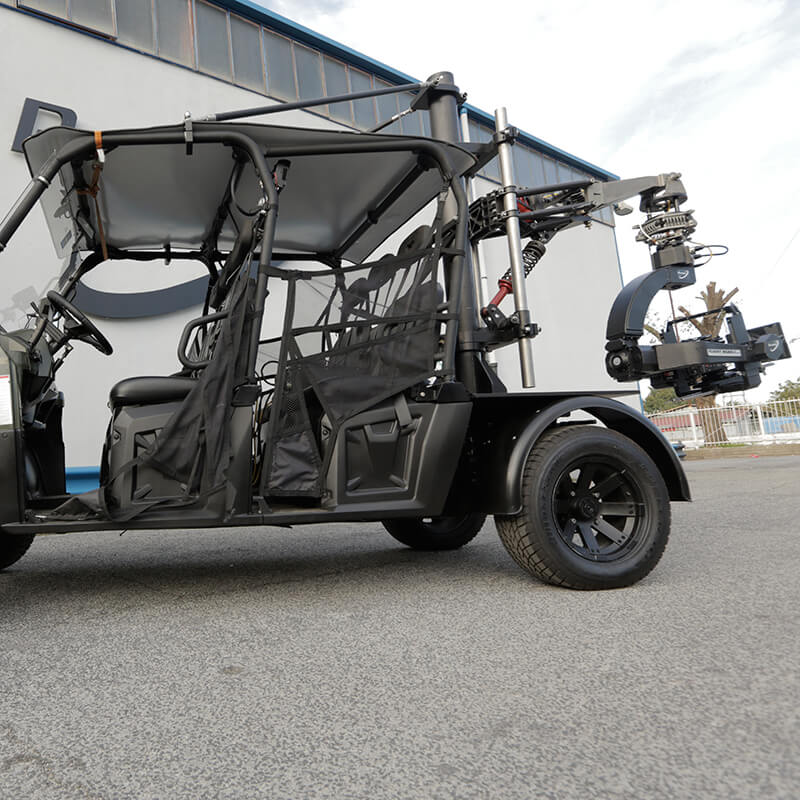

  • PanaRanger is a camera car system based on a Polaris Ranger Crew 800.

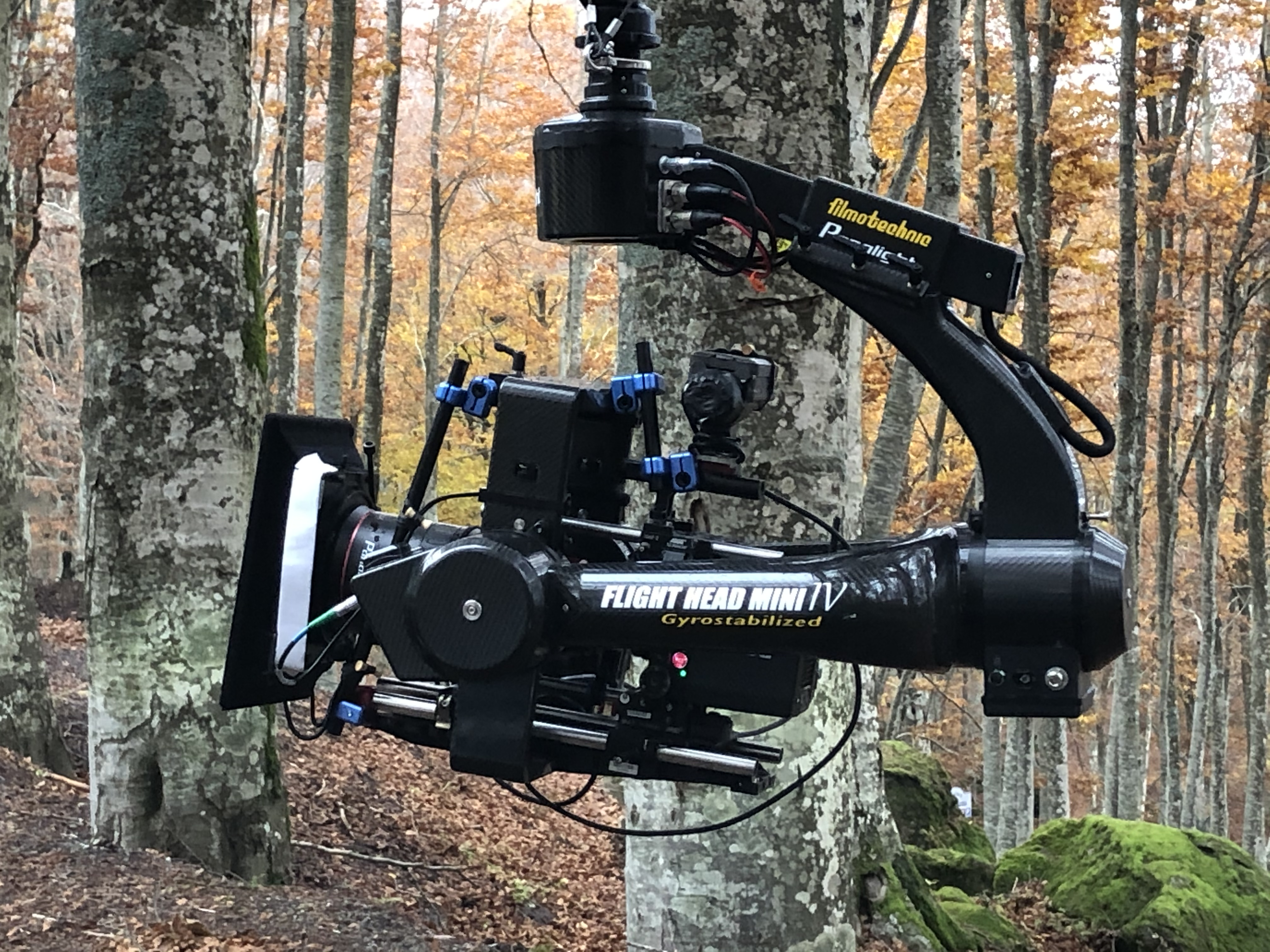

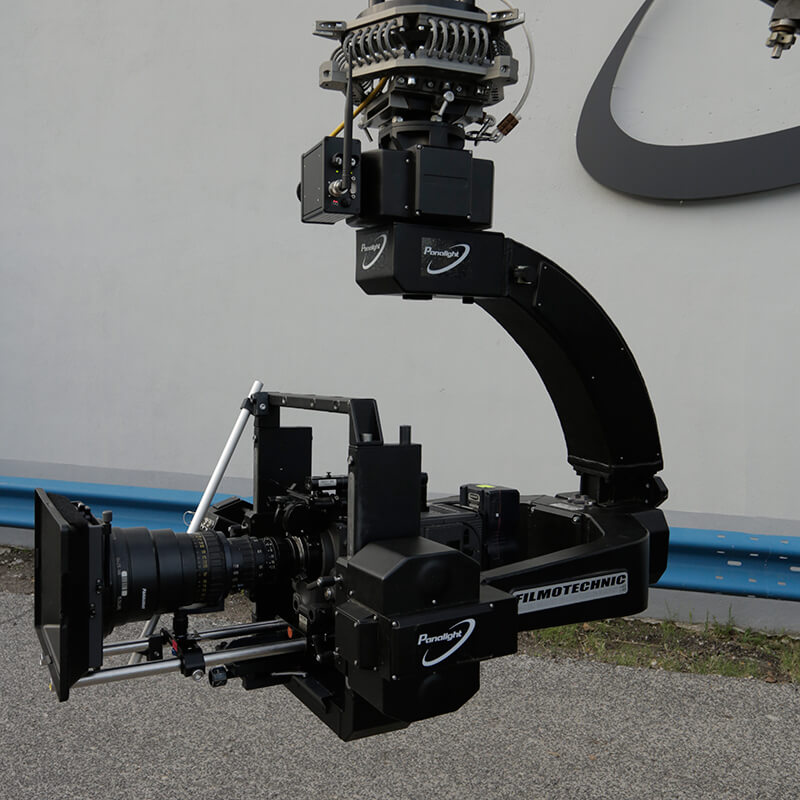

  • An additional support system allow to mount a Flight Head V on both back and front side.
  • On the support system is assembled a shock absorber able to rotate 180° on pan and top to bottom for low mode shooting max 180cm from camera point of view. PanaRanger carries a maximum of 4 people: precision driver, camera operator, focus puller, dop or director.
  • Max speed 90 km/h - 56 mph

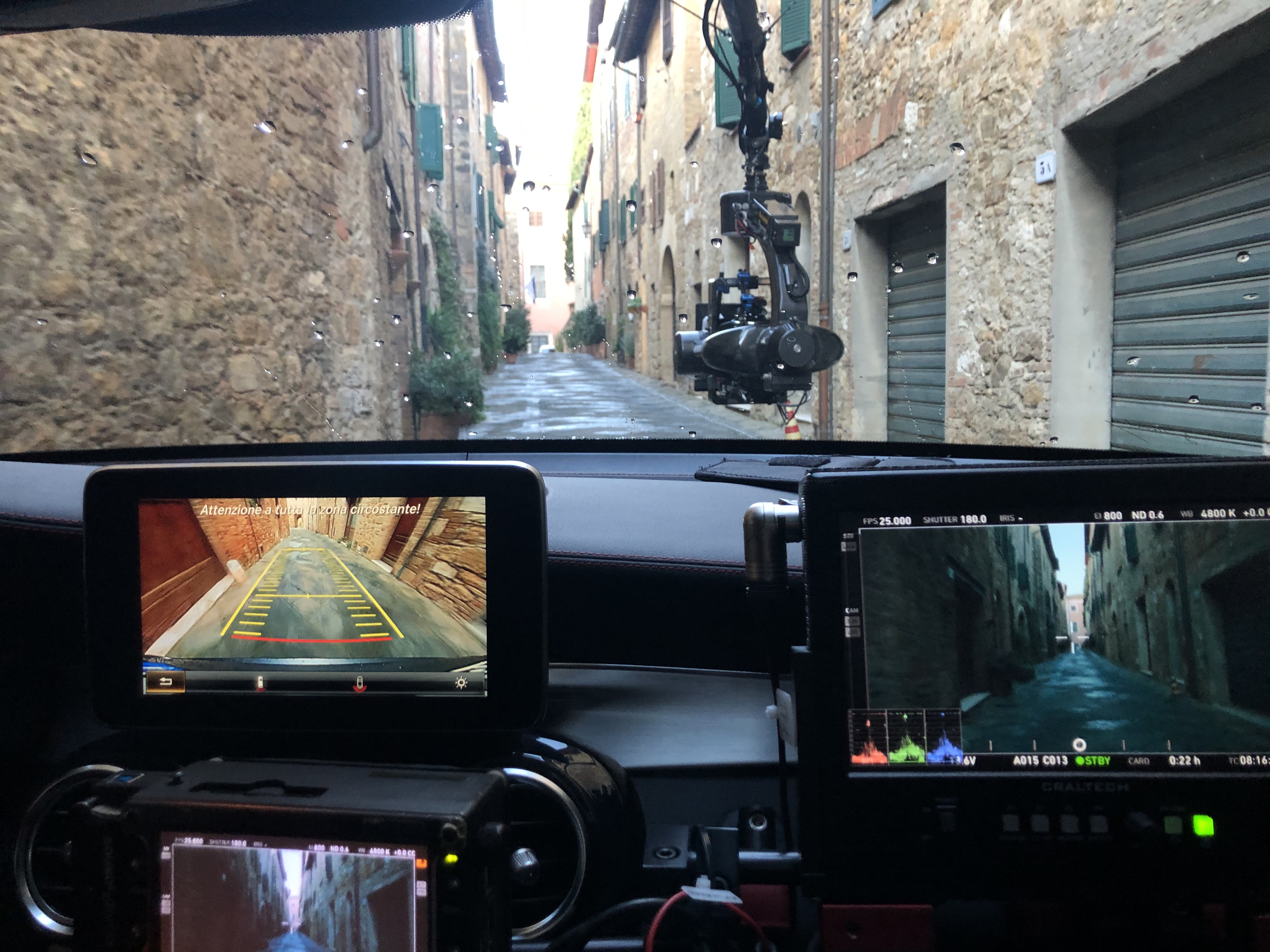

  • PanaRanger is set with 3 monitors: 1 camera, 1 focus puller, 1 playback/precision driver.
  • PanaRanger travels on a van Fiat Ducato + cart
  • Set up time 1,5 h
Download PanaRanger Technical data

Request information

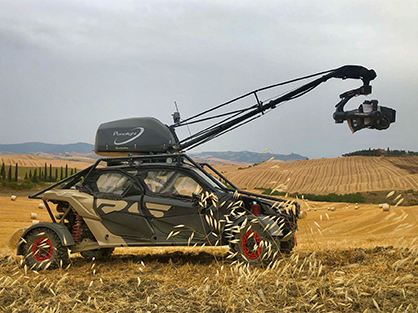

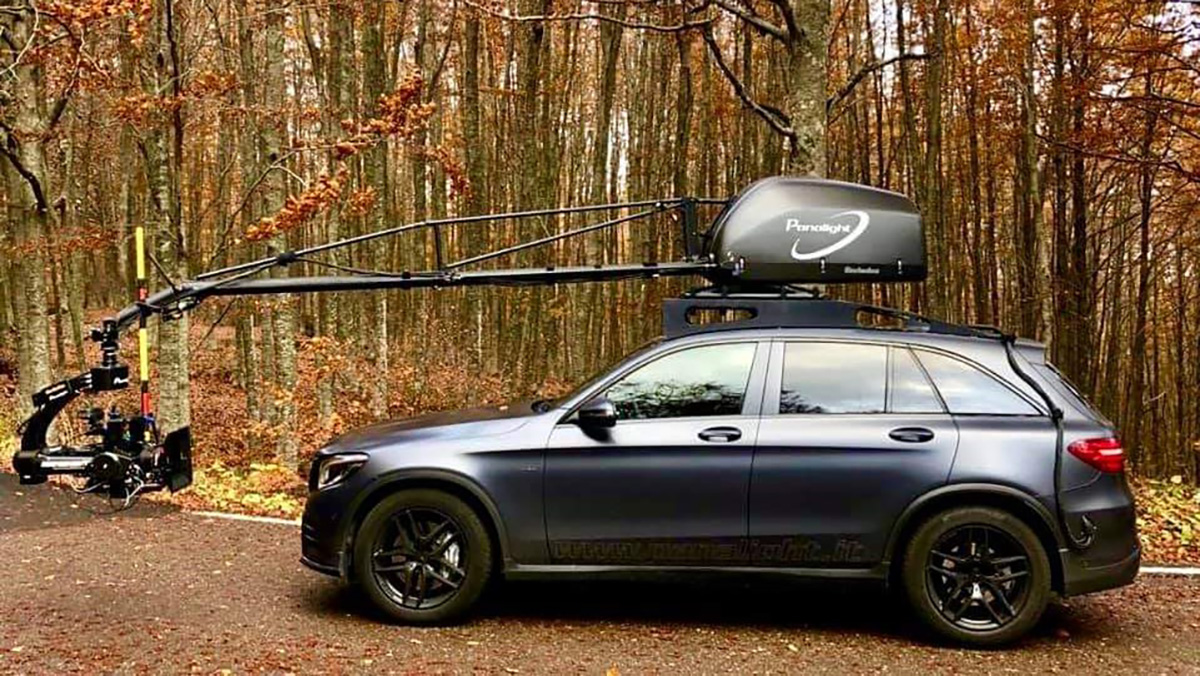

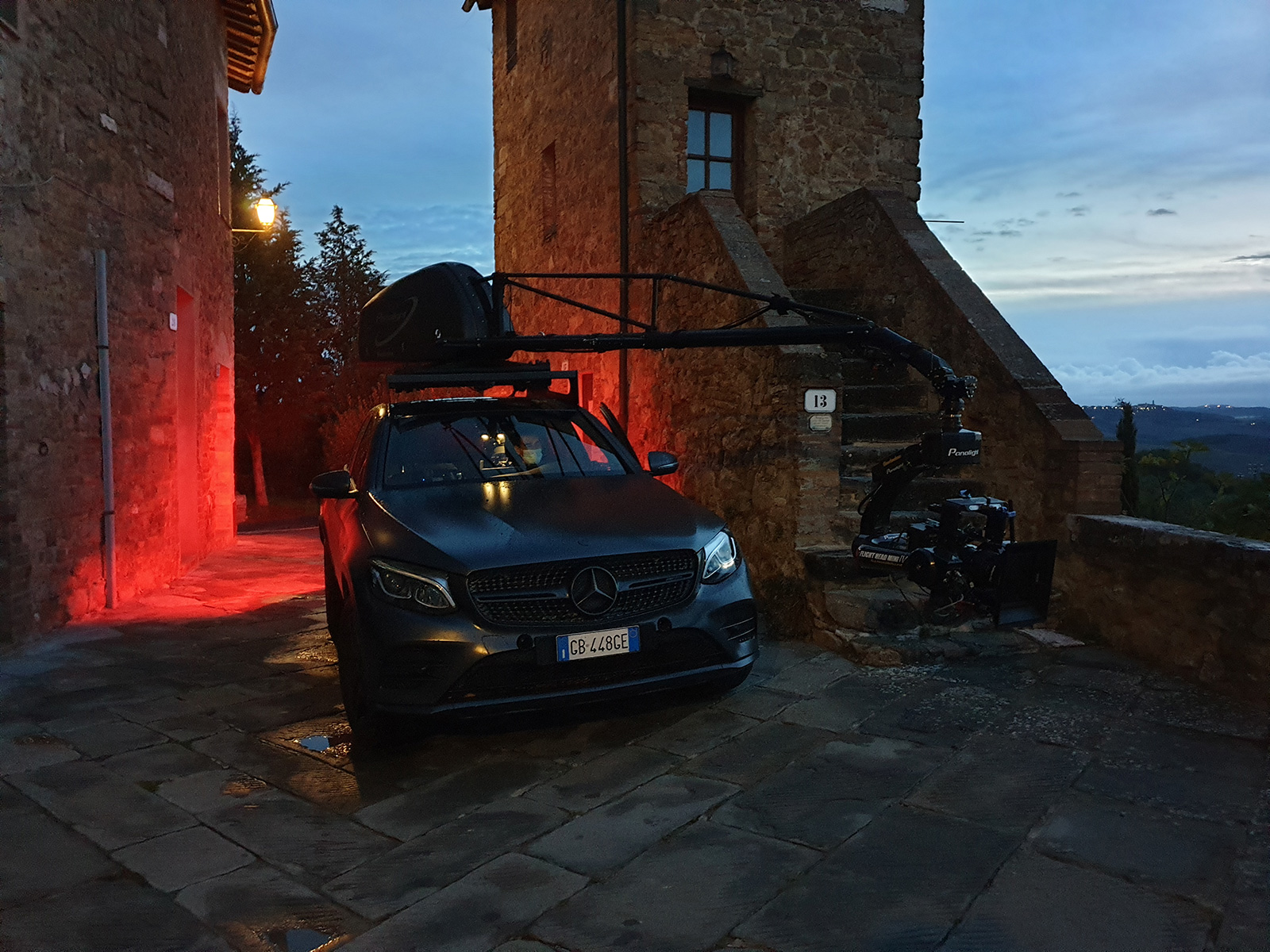

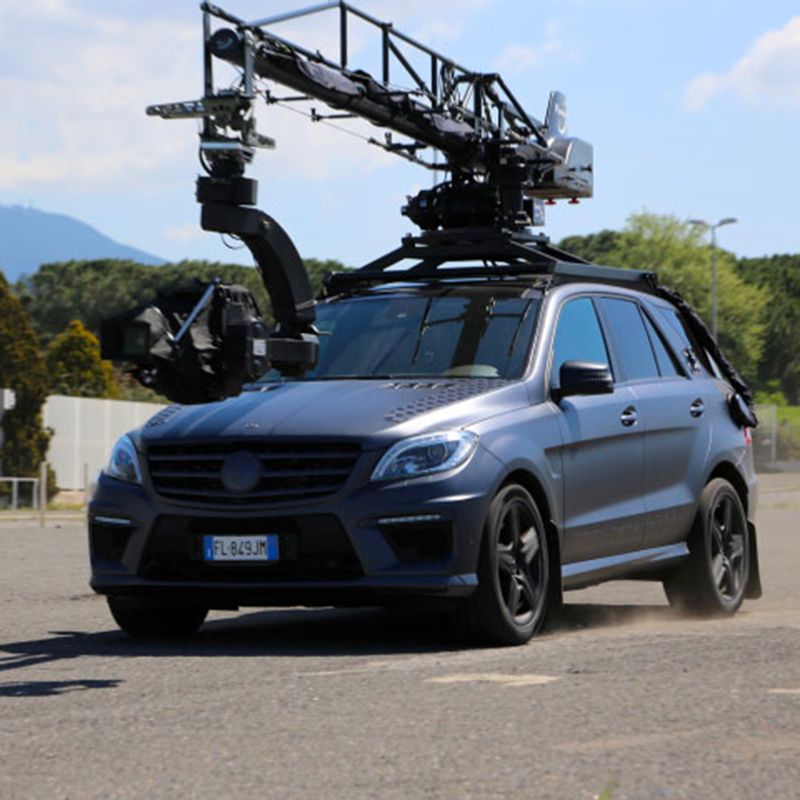

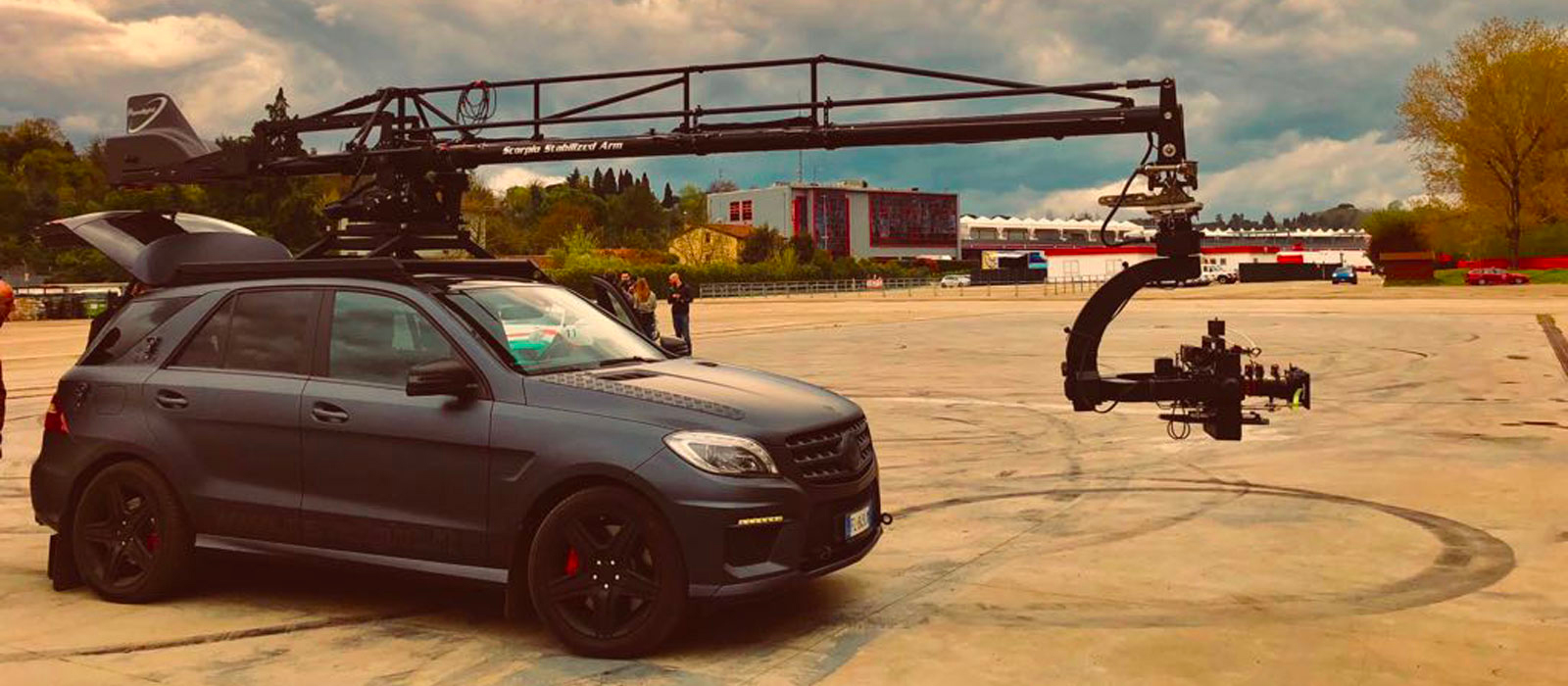

Scorpio Arm

  • Gyro stabilization in the TILT axis
  • Available different arm configurations: 12', 14' and 18'
  • Waterproof

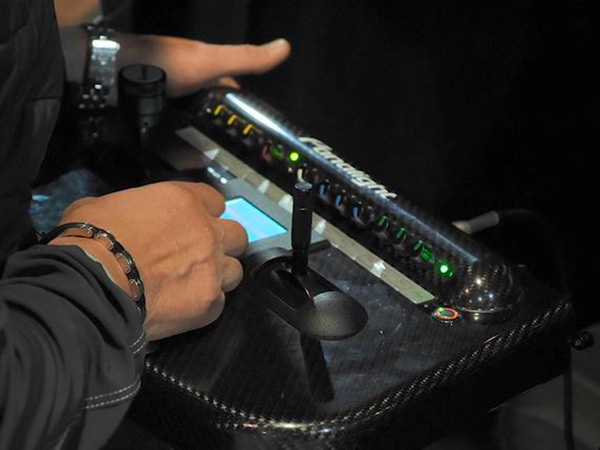

  • Limits, speed control and damping control are available from the control desk

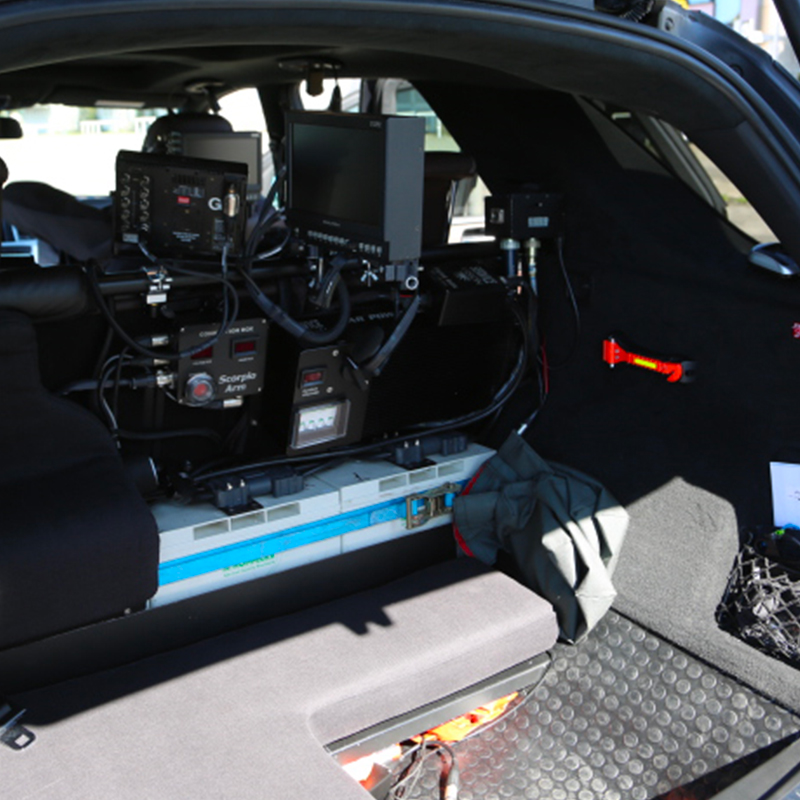

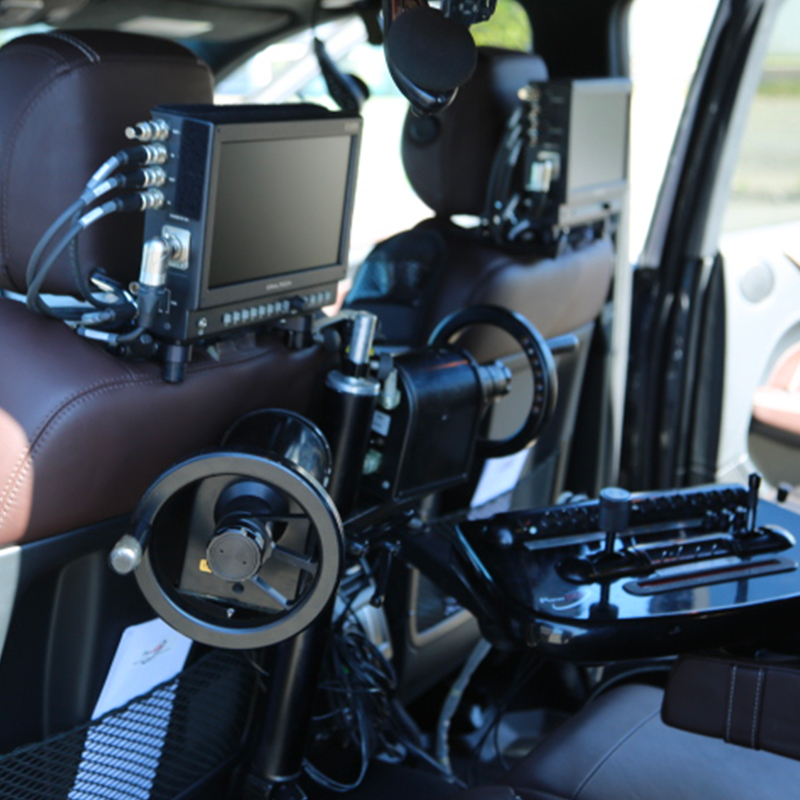

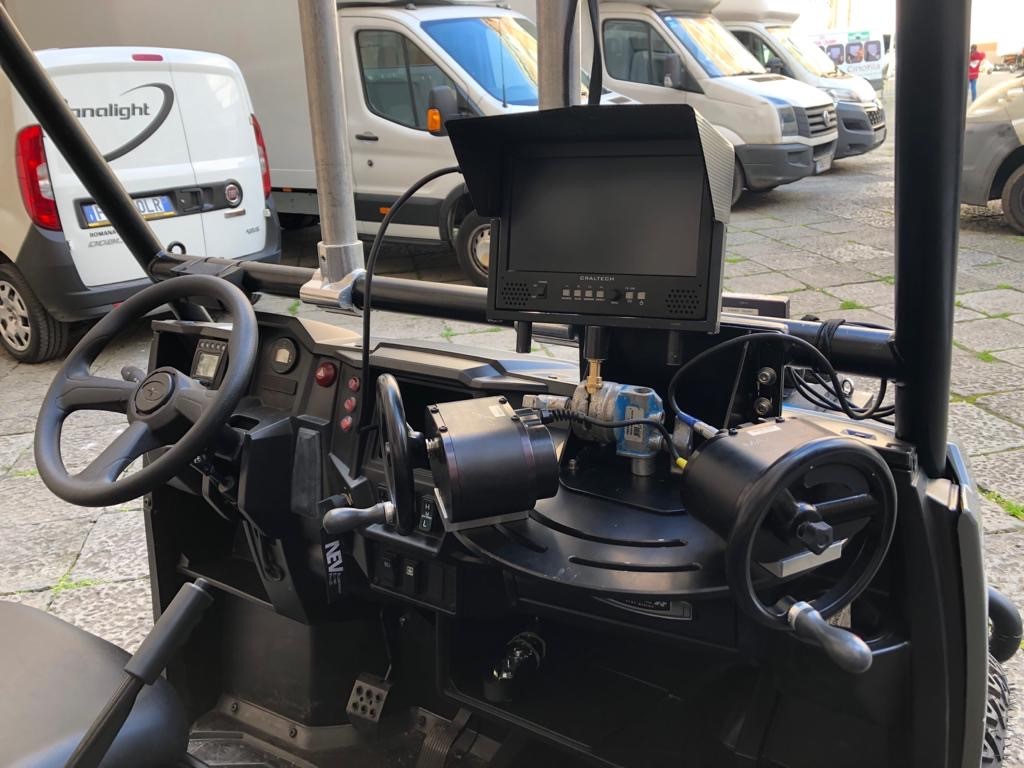

  • Controlled from joystick situated inside the car
  • Send the position of each axis constantly like a Motion Capture
  • Record and repeat all movements of each axis like a Motion Control
  • Go to a fixed position with switch for safety purpouses
  • PAN and TILT motors are the same
  • Powered by 36V batteries
  • PAN speed: 5.5 s/rev
  • Maximum Payload: 70kg (154 lbs)
  • Max. Weight with maximum payload and standard configuration (12'): 365kg (805 lbs)
Download Scorpio Arm Technical Data

Request information

PanaTeam

Info

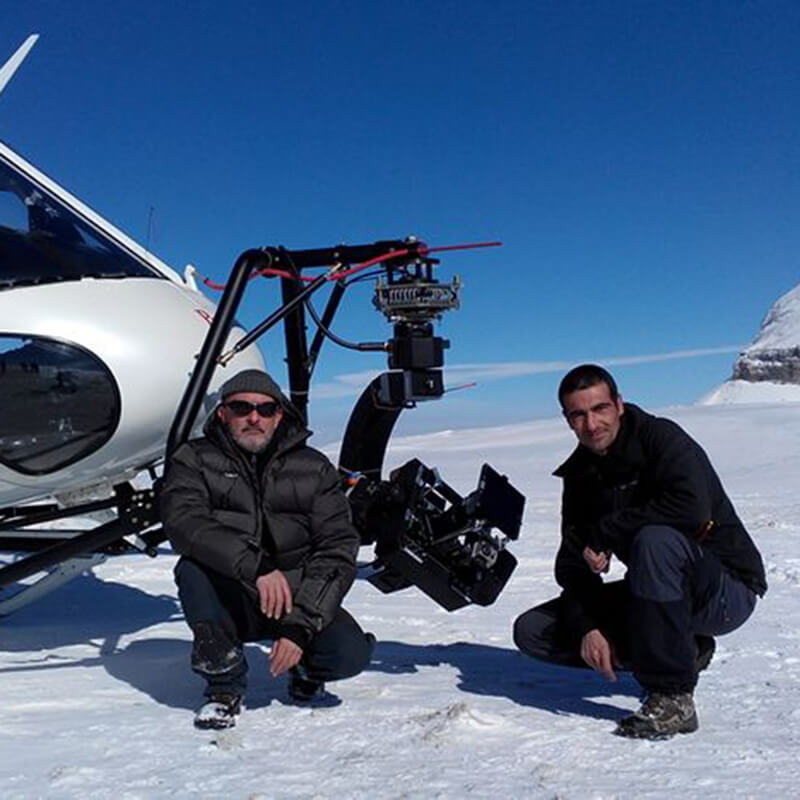

PanaTeam was born in 2011 and is composed by highly qualified professionals specialized in ground and aerial shots using gyro stabilized pursuit systems and remote heads; it has gained a great amount of experience on an international level and it is one of very few teams that can achieve breath-taking sequence shots with these kind of tools for commercials and films. PanaTeam takes special care in assisting productions throughout the whole production process starting from the planning of the shots to the logistics.

Team

Diego Falessi Team Operation Manager
Eric Biglietto DP / Camera Operator Scorpio Arm / Helicopter Unit
David Ambrosi Precision Drive Scorpio Arm / Fly Coordinator Italy Helicopter

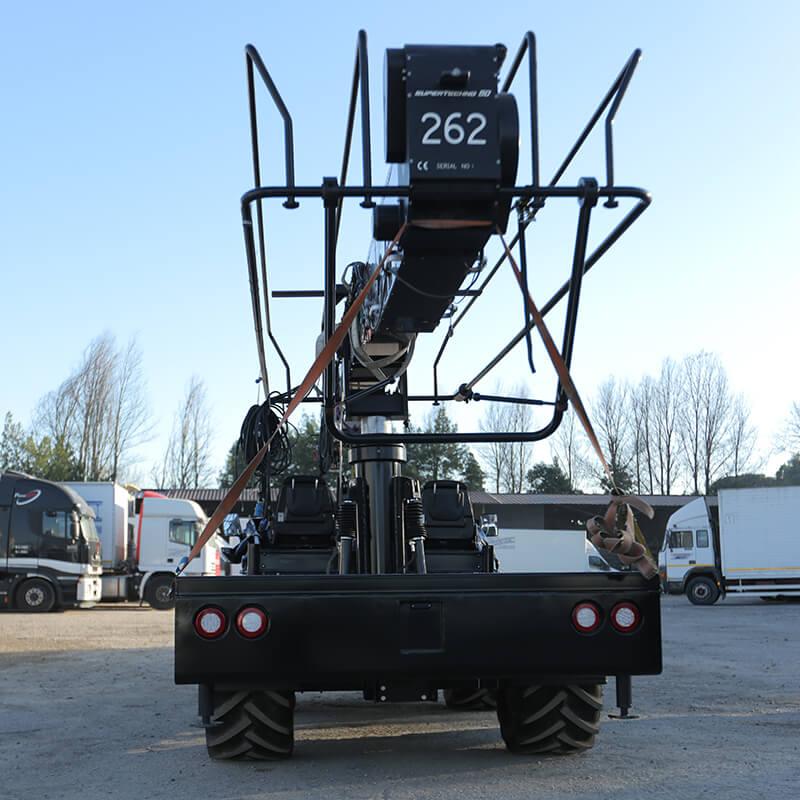

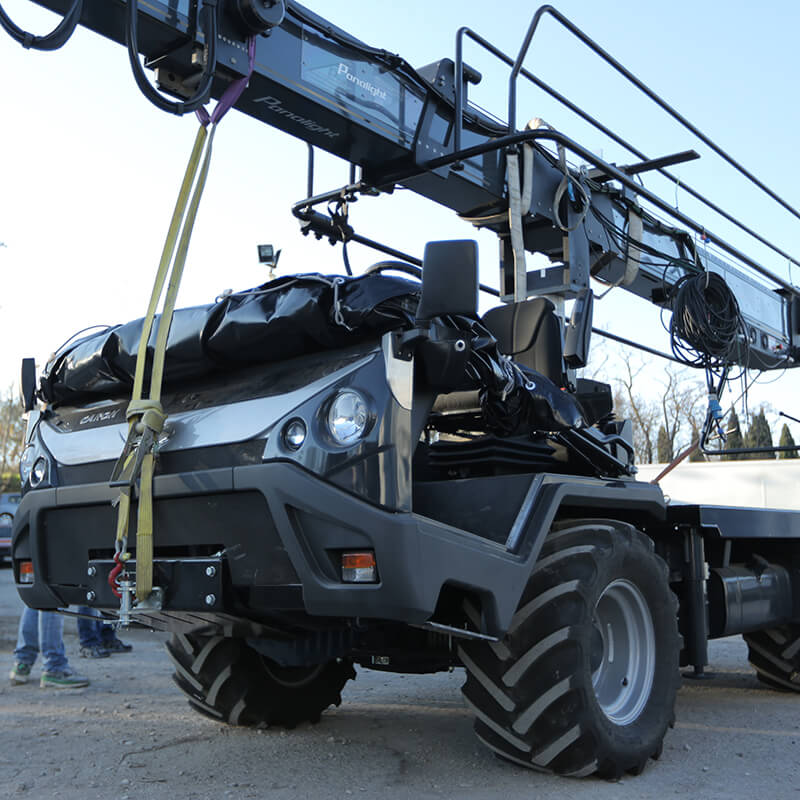

Guido Leonarduzzi Arm Operator Scorpio Arm / Technician Remote Head / Supertechno Crane
Sergio Franceschini Helicopter Pilot / Italy Helicopter Manager
Nicolas Beaugonin Camera Operator
Cristiano Sergioli Head Technician Scorpio Arm / Remote Head / Supertechno Crane
Massimo Carboni Technician Scorpio Arm / Remote Head / Supertechno Crane
Suan Scotti Technician Remote Head / Supertechno Crane

View all video

Request information

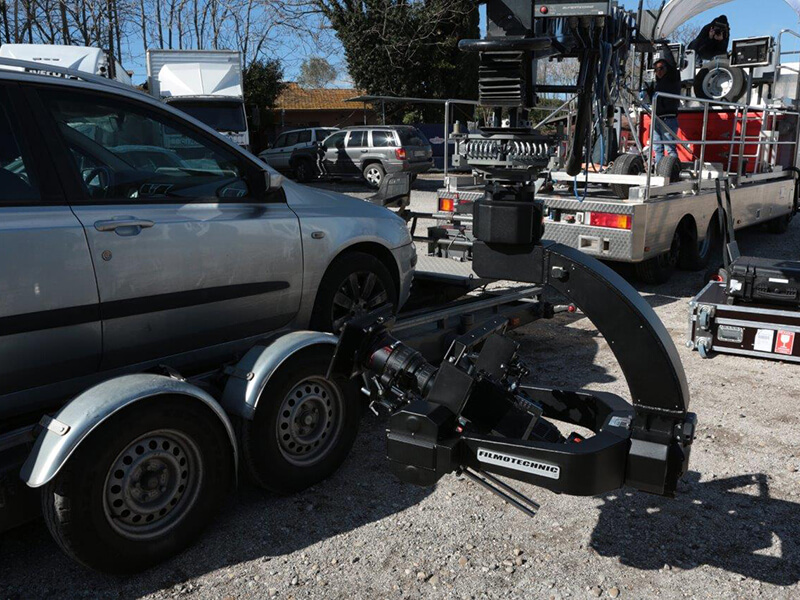

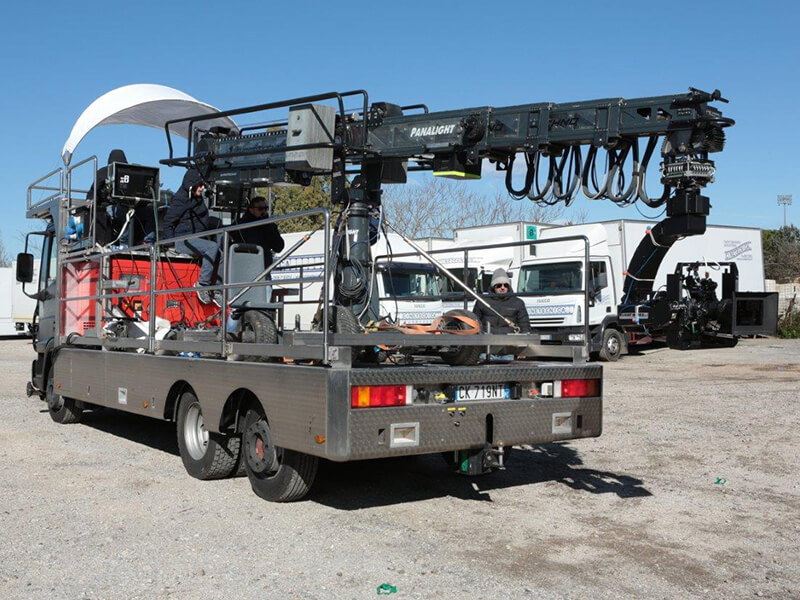

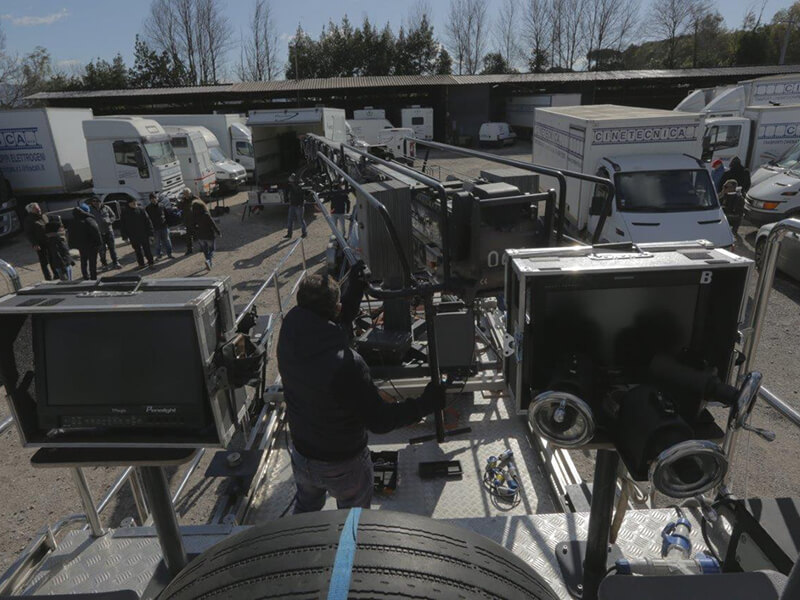

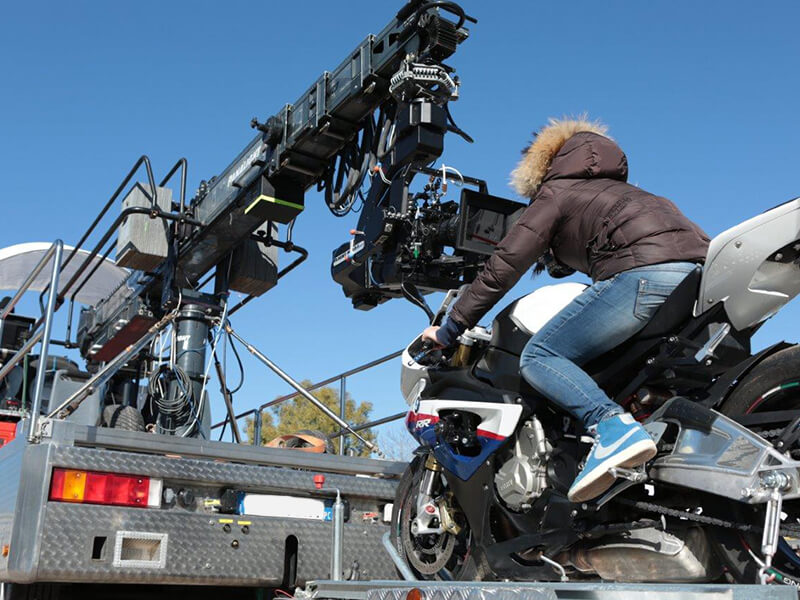

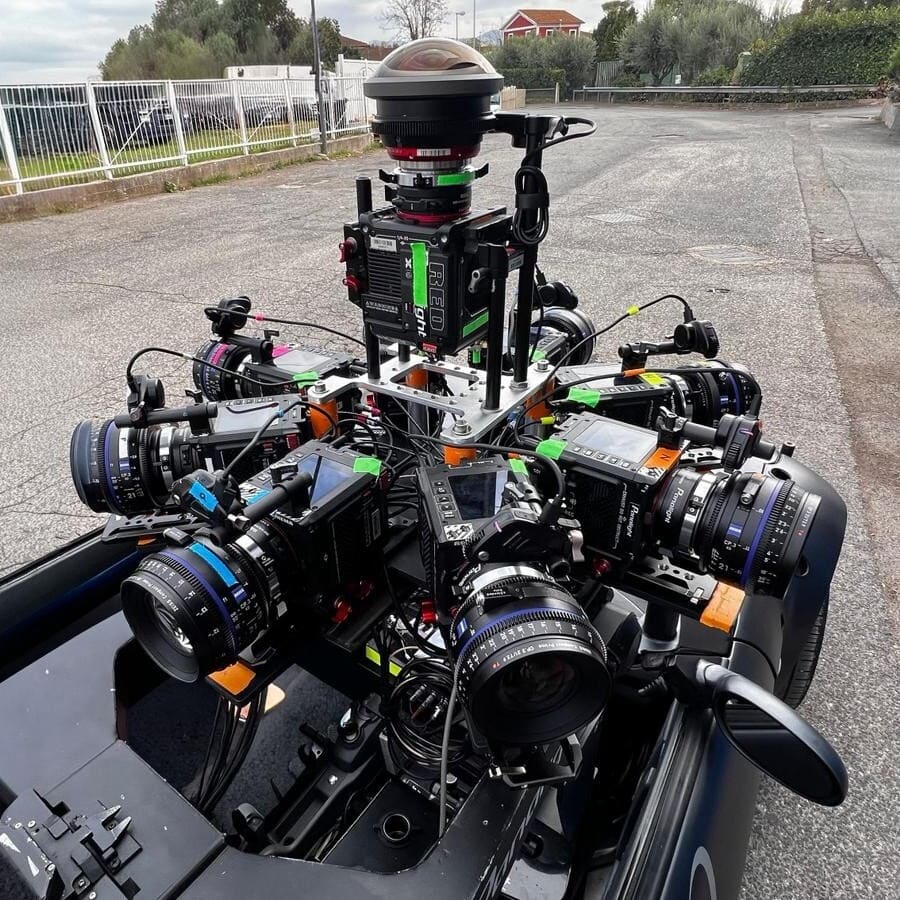

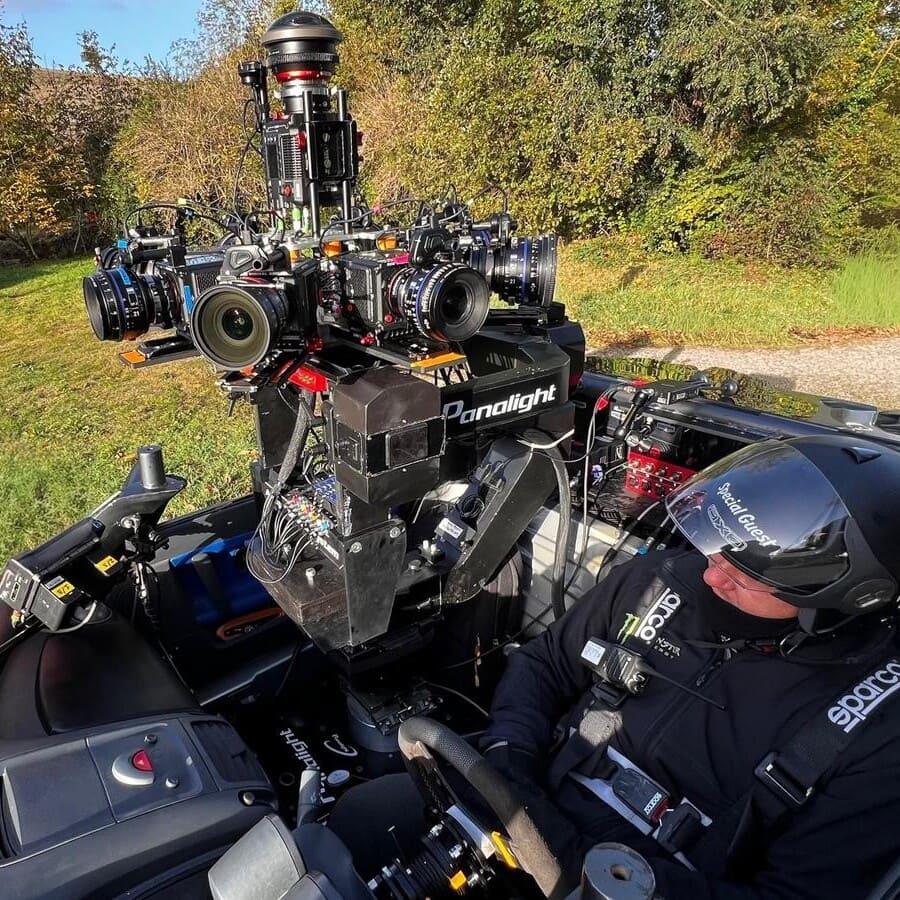

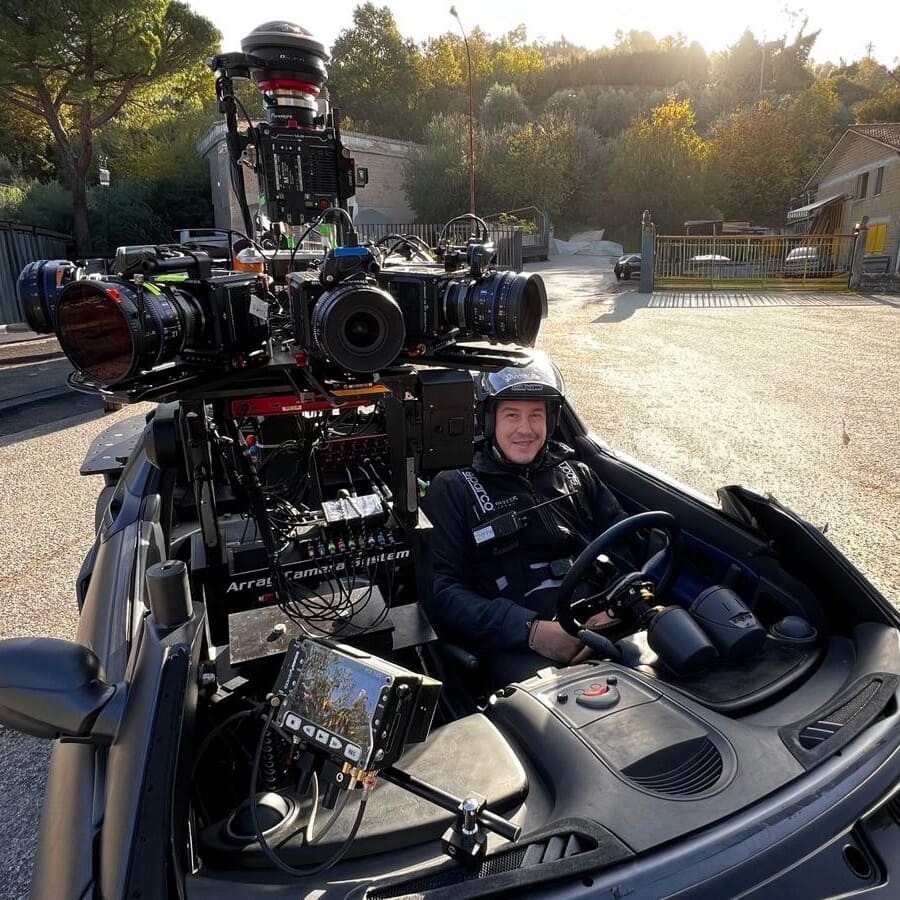

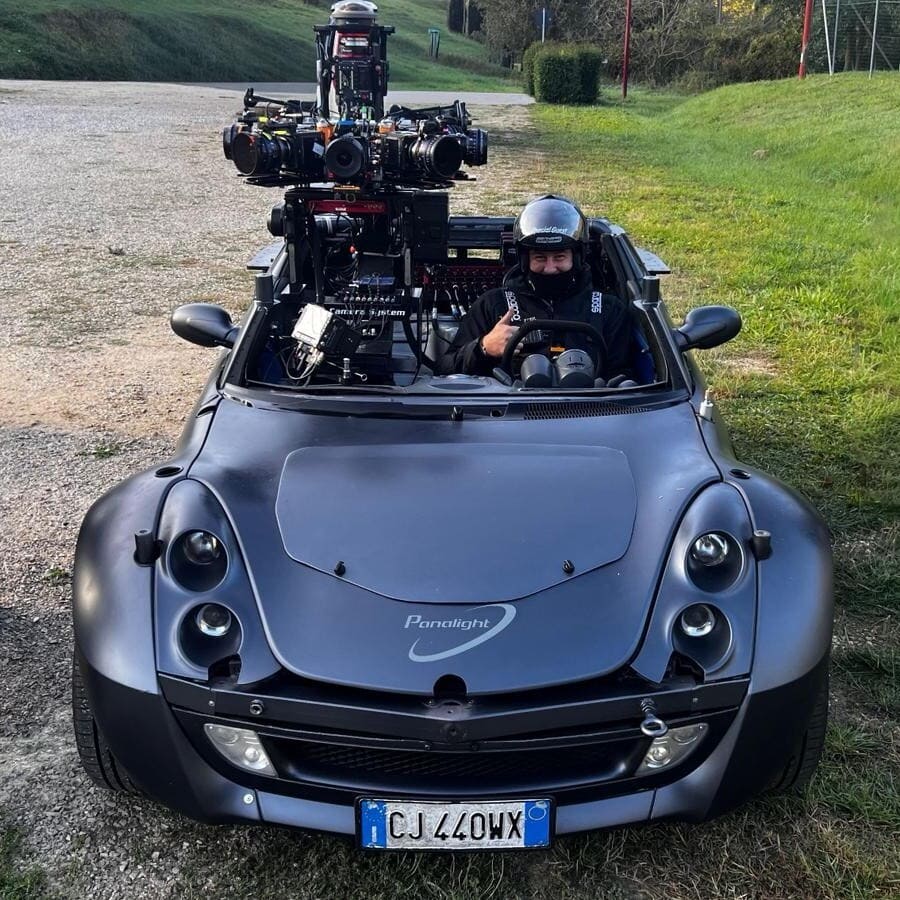

Camera Car

Info

Panalight offers a range of camera car systems.
Apply for information to evaluate with our specialist the best solution for your shooting.

Request information

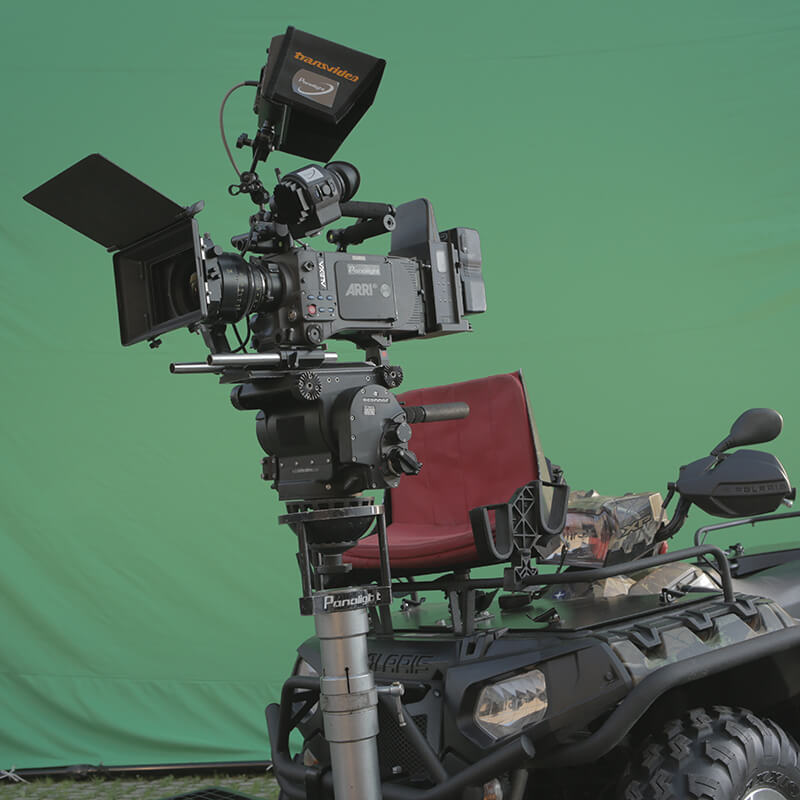

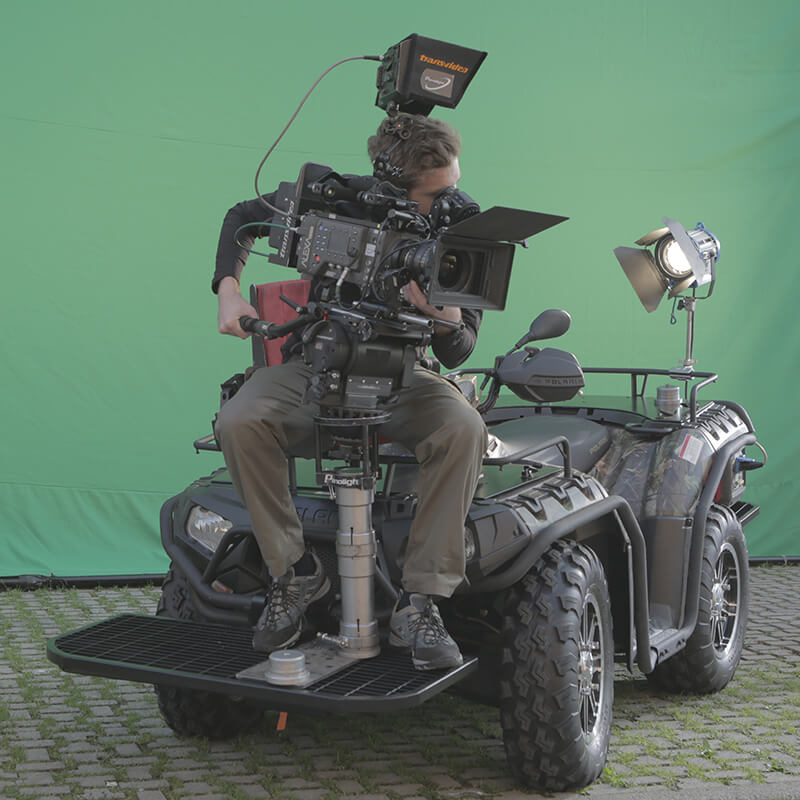

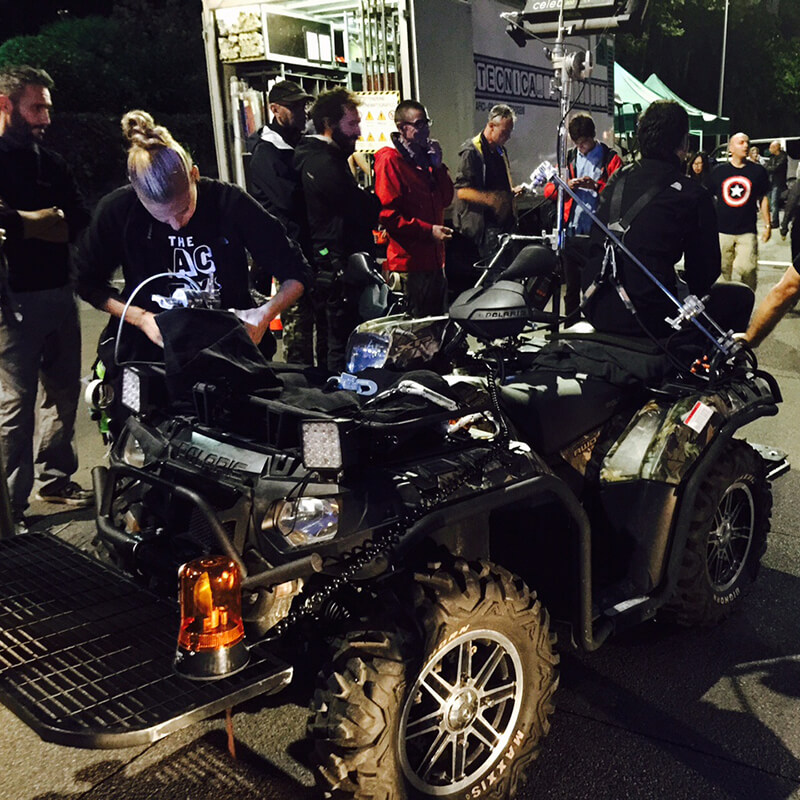

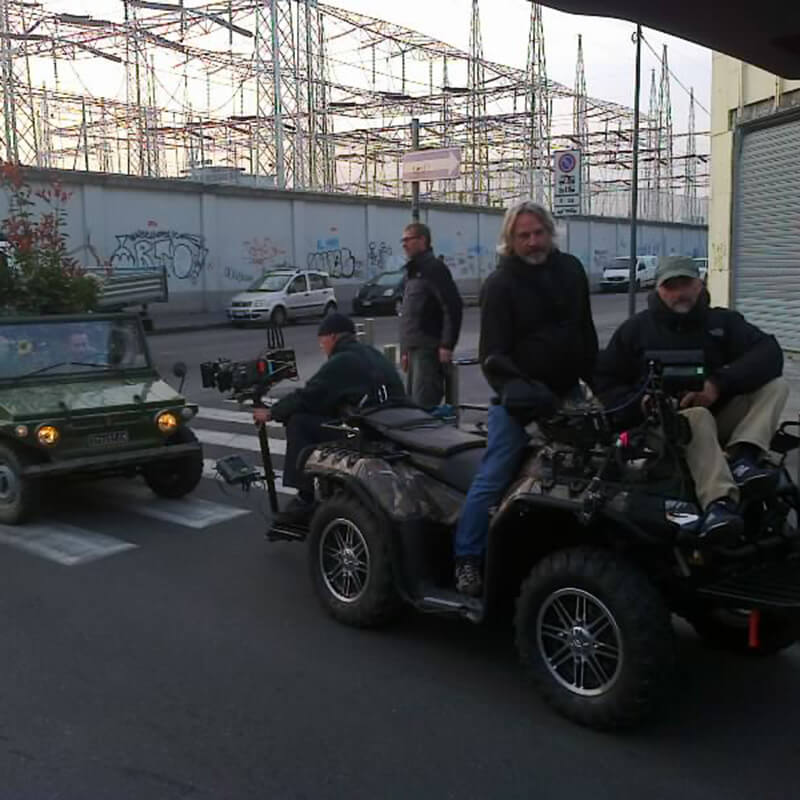

Quad

Technical Data

  • Adjustable Suspension Fox
  • Quad is set ideally for driver, operator, focus puller but can carry max 4 persons.
  • Front and rear plates to carry Bazooka or other accessories.
  • Ideal for off road, ice (studded tires), urban limited areas
  • Max speed 90km/h – 56mph
  • Set up time 15’

Request information

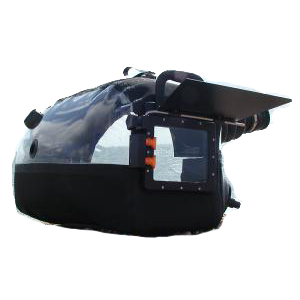

Underwater

Info

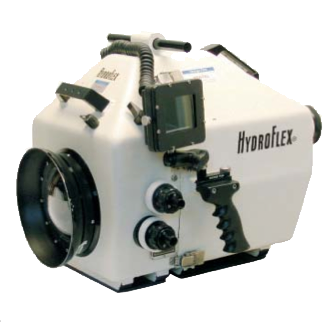

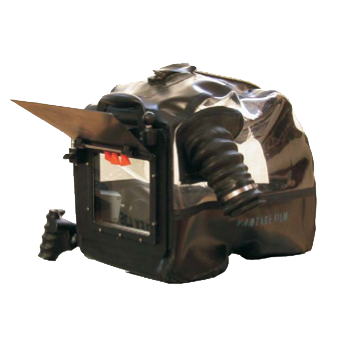

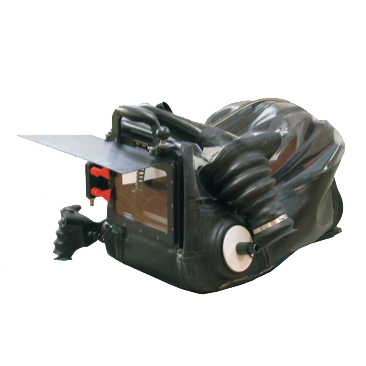

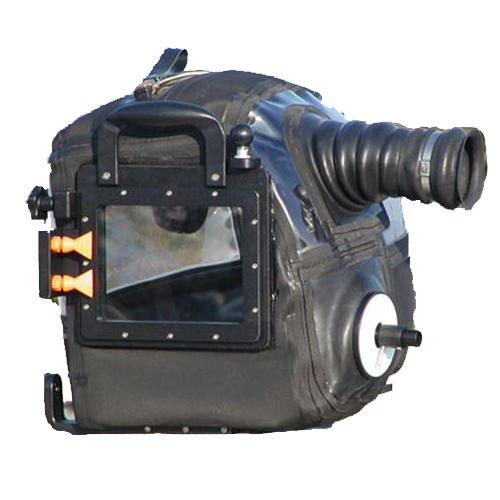

Panalight offers all the kind of splash bags and underwater lights and accessories.
Apply for information to evaluate with our specialist the best solution for your shooting.

Request information
